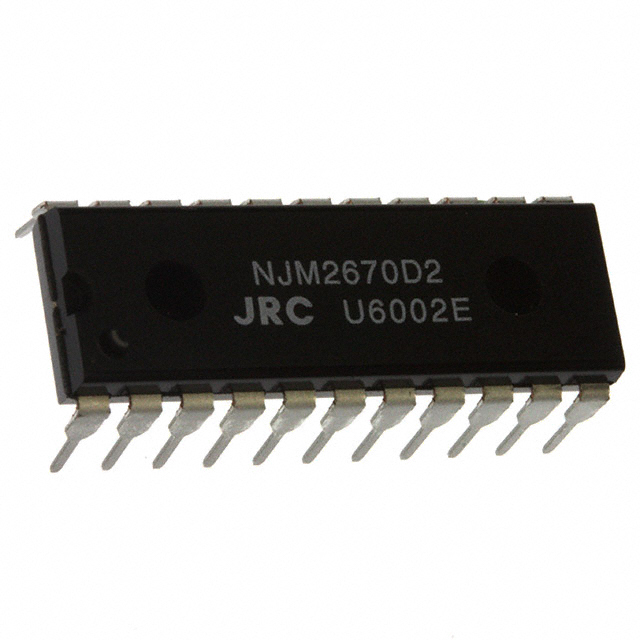

NJM2670D2
IC MTRDRV BIPLR 4.75-5.25V 22DIPManufacturer: Nisshinbo Micro Devices Inc.
Categories: Motor Drivers, Controllers
Quality Control: Learn More
The Nisshinbo Micro Devices Inc. NJM2670D2 is a bipolar motor driver featuring a parallel interface. This fully integrated component consolidates control and power stages for bipolar stepper motors. It operates with a supply voltage range of 4.75V to 5.25V and supports load voltages from 4V to 55V, delivering an output current of 1.3A. The device offers four half-bridge outputs for precise motor control. Designed for through-hole mounting, it is presented in a 22-DIP package. The NJM2670D2 is suitable for general-purpose applications across industries such as industrial automation and consumer electronics. Its operating temperature range is -20°C to 125°C (TJ).
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 22-DIP (0.400"", 10.16mm) |
| Mounting Type | Through Hole |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 1.3A |
| Interface | Parallel |
| Operating Temperature | -20°C ~ 125°C (TJ) |
| Output Configuration | Half Bridge (4) |
| Voltage - Supply | 4.75V ~ 5.25V |
| Applications | General Purpose |
| Technology | Bipolar |
| Voltage - Load | 4V ~ 55V |
| Supplier Device Package | 22-DIP |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushed DC |
| Step Resolution | - |
