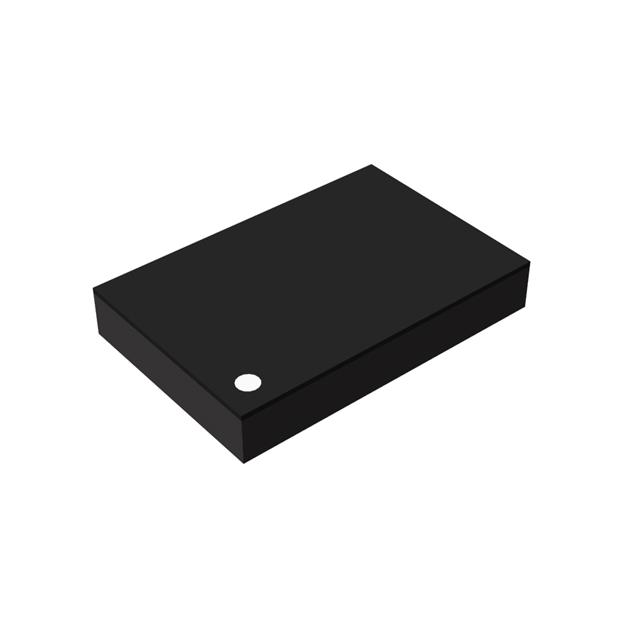

RP120Z001D-E2-F
LOW INPUT / OUTPUT 1.5 A LDO REGManufacturer: Nisshinbo Micro Devices Inc.
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Linear Voltage Regulator IC Positive Adjustable 1 Output 1.5A WLCSP-6-P11
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-XFBGA, WLCSP |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 1.5A |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 2.8 µA |
| Voltage - Input (Max) | 5.5V |
| Number of Regulators | 1 |
| Supplier Device Package | WLCSP-6-P11 |
| Voltage - Output (Max) | 3.6V |
| Voltage - Output (Min/Fixed) | 0.6V |
| Control Features | Current Limit, Enable, Soft Start |
| PSRR | 90dB ~ 60dB (1kHz ~ 100kHz) |
| Voltage Dropout (Max) | 0.168V @ 1.5A |
| Protection Features | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) |
