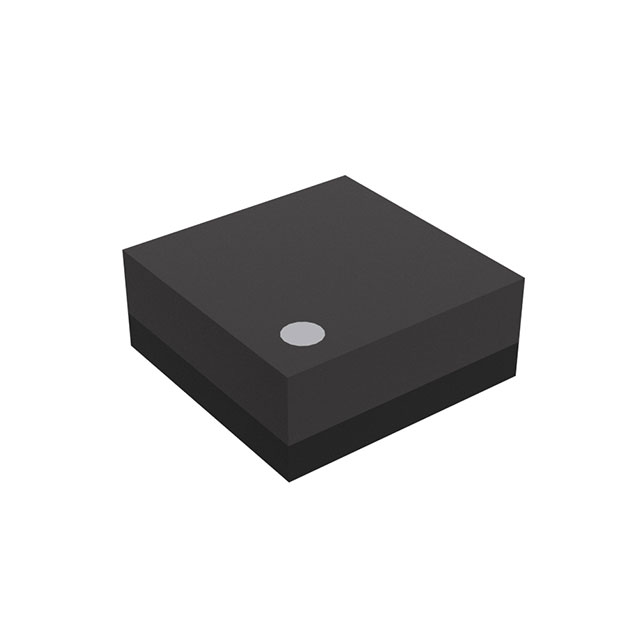

RP116Z121D-TR-F
IC REG LIN 1.2V 400MA WLCSP-4-P7Manufacturer: Nisshinbo Micro Devices Inc.
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Nisshinbo Micro Devices Inc. RP116Z series linear voltage regulator, part number RP116Z121D-TR-F, provides a fixed 1.2V output with a 400mA current capability. This WLCSP-4-P7 packaged device features a low dropout voltage of 0.38V at maximum output current, ensuring efficient regulation even with minimal input-output differential. The RP116Z121D-TR-F includes an enable pin for power sequencing and protection against overcurrent conditions. With a quiescent current of 75 µA and a Power Supply Rejection Ratio (PSRR) of 60dB at 10kHz, this regulator is suitable for battery-powered portable devices, automotive electronics, and general-purpose power management applications. The device operates within a temperature range of -40°C to 85°C and is supplied in tape and reel packaging.
Additional Information
Series: RP116ZRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-XFBGA, WLCSP |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 400mA |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 75 µA |
| Voltage - Input (Max) | 3.6V |
| Number of Regulators | 1 |
| Supplier Device Package | WLCSP-4-P7 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 1.2V |
| Control Features | Enable |
| PSRR | 60dB (10kHz) |
| Voltage Dropout (Max) | 0.38V @ 400mA |
| Protection Features | Over Current |
