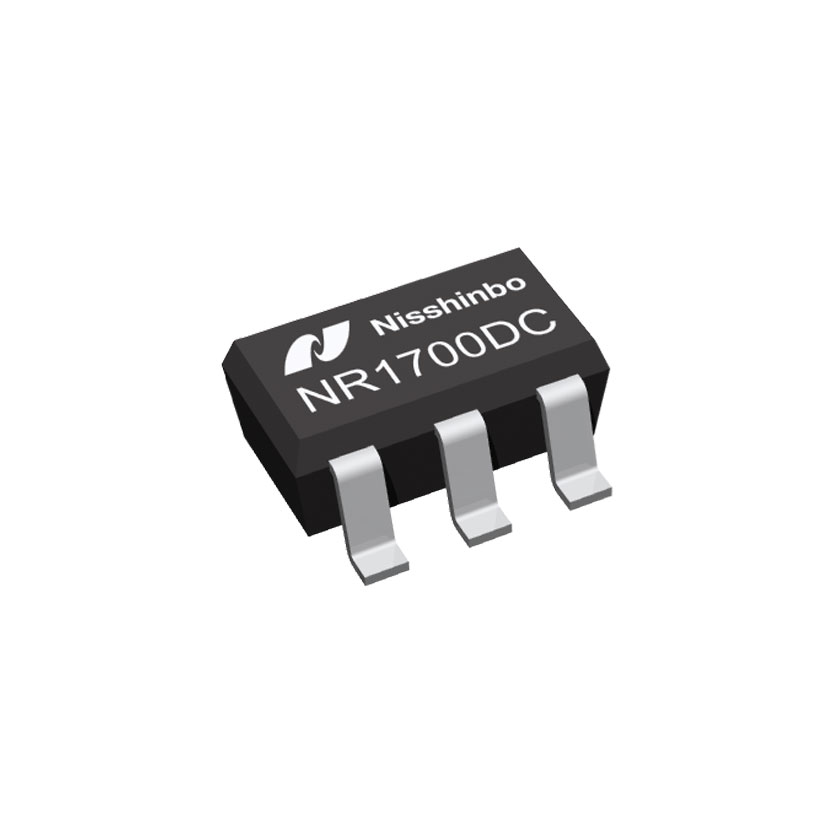

NR1700DC000AE1P
FOR AUTOMOTIVE 200MA 42V INPUT AManufacturer: Nisshinbo Micro Devices Inc.
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Linear Voltage Regulator IC Positive Adjustable 1 Output 200mA SOT-23-5-DC
Additional Information
Series: NR1700RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-74A, SOT-753 |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 200mA |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 21 µA |
| Voltage - Input (Max) | 42V |
| Number of Regulators | 1 |
| Supplier Device Package | SOT-23-5-DC |
| Voltage - Output (Max) | 24V |
| Voltage - Output (Min/Fixed) | 1.2V |
| Control Features | Current Limit, Enable |
| Grade | Automotive |
| PSRR | 55dB (100Hz) |
| Voltage Dropout (Max) | 1V @ 200mA |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Qualification | AEC-Q100 |
Request a Quote
Clients Also Buy

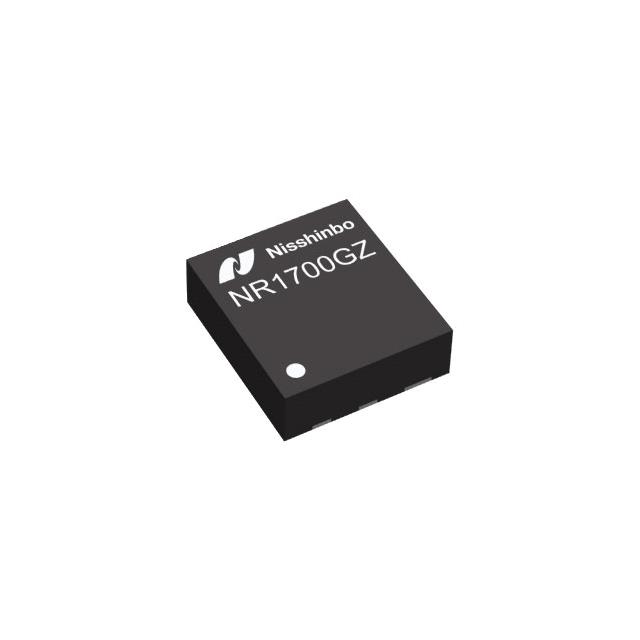

NR1700GZ000AE4D
FOR INDUSTRIAL 200MA 42V INPUT A

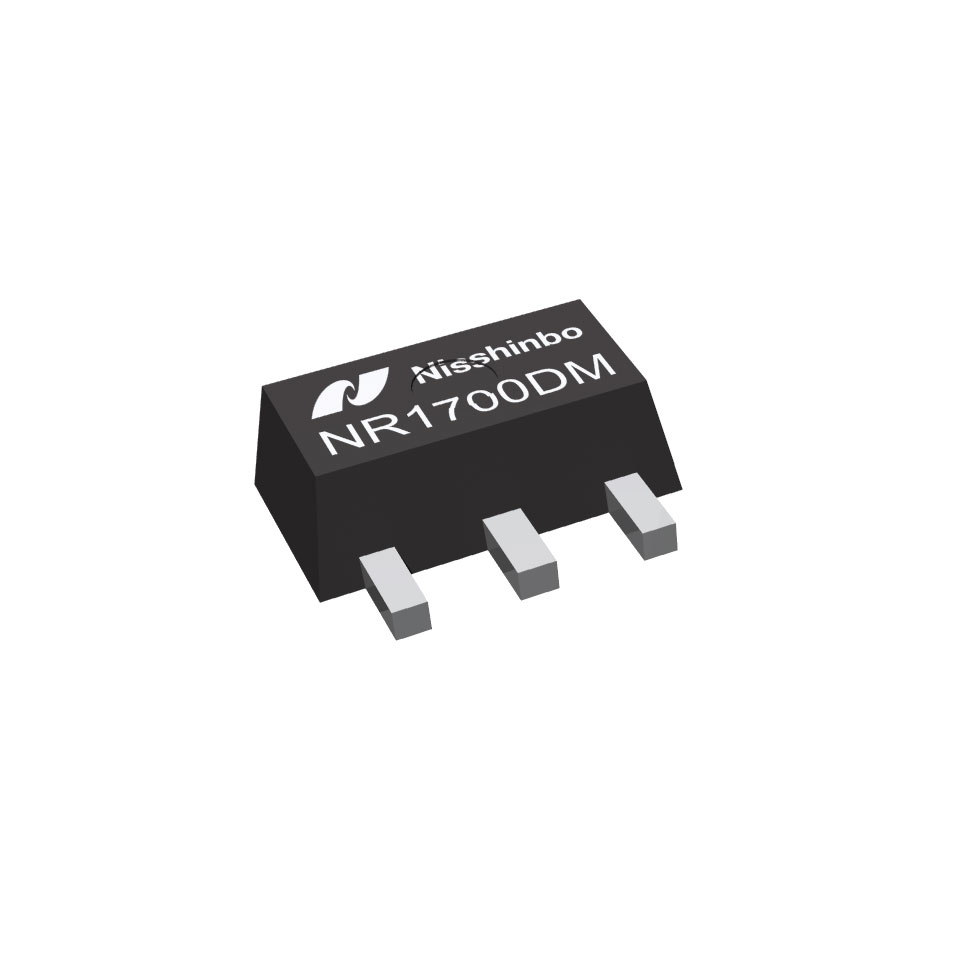

NR1700DM000AE1D
