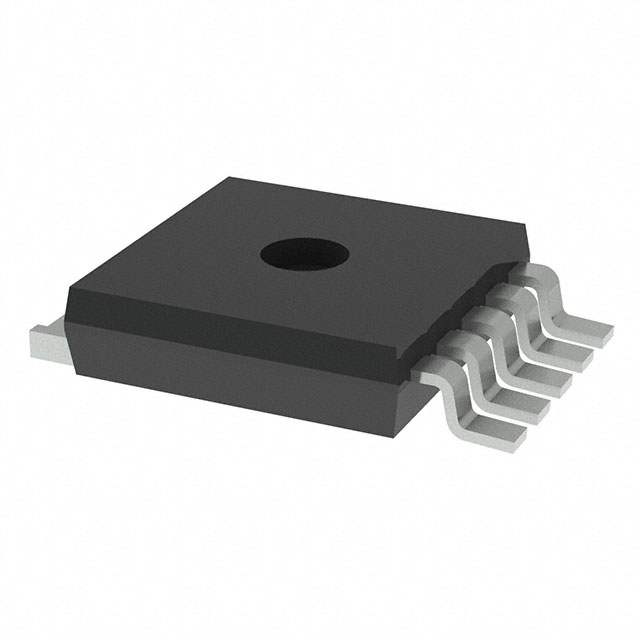

NJW4184DL3-15A-TE2
IC REG LINEAR 15V 300MA TO252-5Manufacturer: Nisshinbo Micro Devices Inc.
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Nisshinbo Micro Devices Inc. NJW4184DL3-15A-TE2 is a positive fixed output linear voltage regulator IC. This component delivers a stable 15V output with a maximum current capability of 300mA. Designed for surface mount applications, it is supplied in a TO-252-5 (DPAK) package. Key features include an enable pin for control, low quiescent current of 12µA, and robust protection against over current and over temperature conditions. The device boasts a typical voltage dropout of 0.1V at 100mA, supporting efficient operation. With an input voltage range up to 35V and a Power Supply Rejection Ratio (PSRR) of 29dB at 1kHz, the NJW4184DL3-15A-TE2 is suitable for applications in consumer electronics, industrial control systems, and automotive electronics. It operates within a temperature range of -40°C to 85°C and is provided in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-252-6, DPAK (5 Leads + Tab) |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 300mA |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 12 µA |
| Voltage - Input (Max) | 35V |
| Number of Regulators | 1 |
| Supplier Device Package | TO-252-5 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 15V |
| Control Features | Enable |
| PSRR | 29dB (1kHz) |
| Voltage Dropout (Max) | 0.1V @ 100mA |
| Protection Features | Over Current, Over Temperature |
