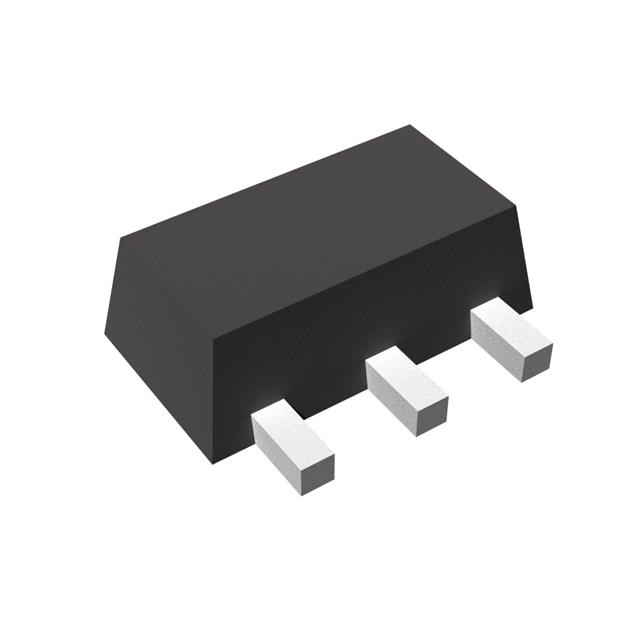

NJU7201U32-TE1
IC REG LINEAR 3.2V 100MA SOT89-3Manufacturer: Nisshinbo Micro Devices Inc.
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Nisshinbo Micro Devices Inc. NJU7201U32-TE1 is a positive fixed output linear voltage regulator IC. This component provides a stable 3.2V output with a maximum current capability of 100mA. Designed for efficient power regulation, it features a low quiescent current of 30 µA. The voltage dropout is a maximum of 0.6V at 20mA, making it suitable for applications where power efficiency is critical. The NJU7201U32-TE1 operates with an input voltage range up to 12V. It is housed in a compact SOT-89-3 surface-mount package, ideal for space-constrained designs. This regulator finds application in consumer electronics, portable devices, and automotive systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-243AA |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 100mA |
| Operating Temperature | -25°C ~ 75°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 30 µA |
| Voltage - Input (Max) | 12V |
| Number of Regulators | 1 |
| Supplier Device Package | SOT-89-3 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.2V |
| Control Features | - |
| PSRR | - |
| Voltage Dropout (Max) | 0.6V @ 20mA |
| Protection Features | - |
