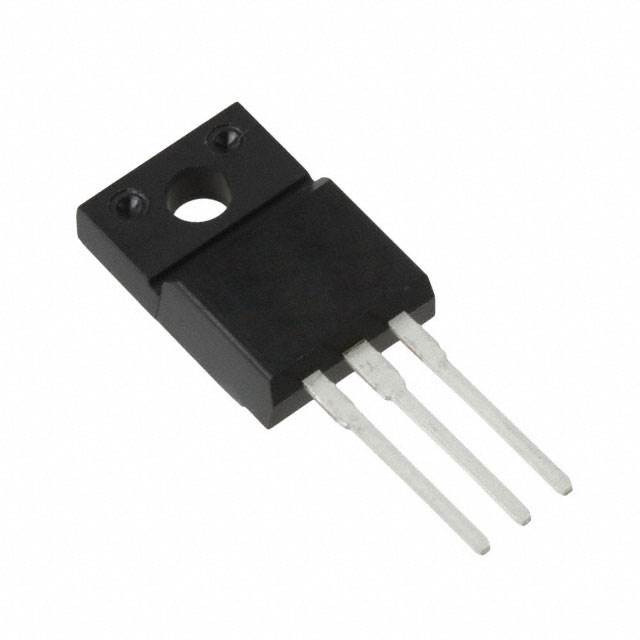

NJM78M12FA
IC REG LINEAR 12V 500MA TO220FManufacturer: Nisshinbo Micro Devices Inc.
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Nisshinbo Micro Devices Inc. NJM78M12FA is a positive, fixed 12V linear voltage regulator IC. This component delivers a stable 500mA output current and features over-temperature and short-circuit protection. With a maximum input voltage of 35V and a quiescent current of 6mA, it is suitable for applications requiring reliable voltage regulation. The TO-220F package with through-hole mounting is ideal for robust circuit designs. This regulator is commonly found in industrial, automotive, and consumer electronics applications where dependable power management is critical. The device exhibits a Power Supply Rejection Ratio (PSRR) of 70dB at 120Hz, contributing to cleaner power delivery.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-220-3 Full Pack |
| Output Type | Fixed |
| Mounting Type | Through Hole |
| Current - Output | 500mA |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 6 mA |
| Voltage - Input (Max) | 35V |
| Number of Regulators | 1 |
| Supplier Device Package | TO-220F |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 12V |
| Control Features | - |
| PSRR | 70dB (120Hz) |
| Voltage Dropout (Max) | - |
| Protection Features | Over Temperature, Short Circuit |
