NJM2819ADL3-05-TE1
IC REG LINEAR 5V 2A TO252-5Manufacturer: Nisshinbo Micro Devices Inc.
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More

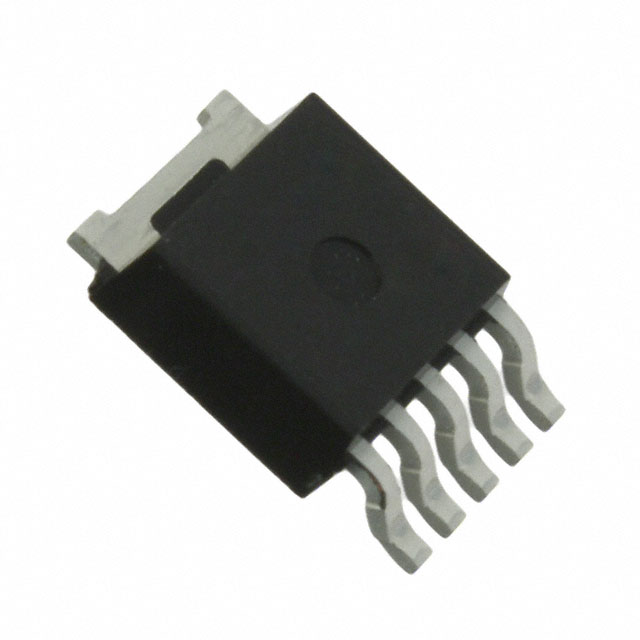

Nisshinbo Micro Devices Inc. NJM2819ADL3-05-TE1 is a fixed 5V positive linear voltage regulator with a high output current capability of 2A. This component features an enable pin for control and robust protection circuits including over current, over temperature, and short circuit protection. With a low dropout voltage of 0.09V at 1A and a Power Supply Rejection Ratio (PSRR) of 65dB at 1kHz, it is well-suited for applications demanding stable power delivery and efficient operation. The device operates within a temperature range of -40°C to 85°C and is supplied in a TO-252-5 (DPAK) surface-mount package on tape and reel. Common industry applications include power management in consumer electronics, automotive systems, and industrial equipment.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-252-6, DPAK (5 Leads + Tab) |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 2A |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 800 µA |
| Voltage - Input (Max) | 7V |
| Number of Regulators | 1 |
| Supplier Device Package | TO-252-5 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 5V |
| Control Features | Enable |
| PSRR | 65dB (1kHz) |
| Voltage Dropout (Max) | 0.09V @ 1A |
| Protection Features | Over Current, Over Temperature, Short Circuit |
