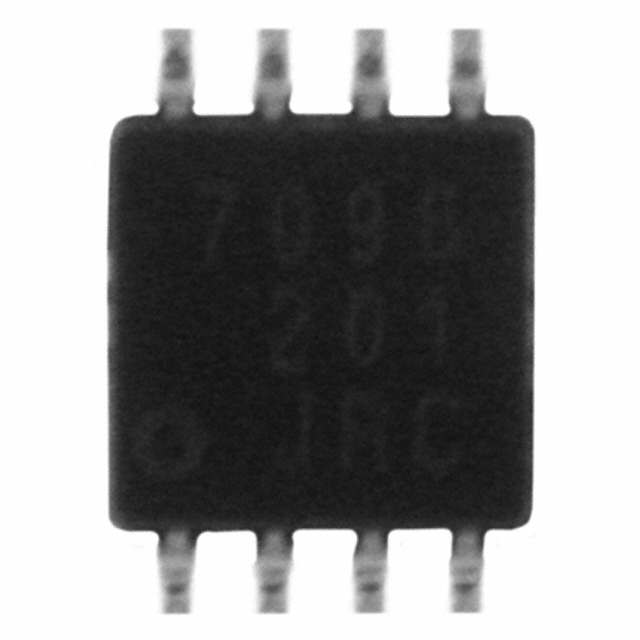

NJU7096RB1-TE1
IC CMOS 2 CIRCUIT 8TVSPManufacturer: Nisshinbo Micro Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Nisshinbo Micro Devices Inc. NJU7096RB1-TE1 is a dual-circuit CMOS operational amplifier. This component features rail-to-rail output capabilities and operates with a supply voltage range of 1V to 5.5V. The NJU7096RB1-TE1 offers a 1 MHz gain bandwidth product and a typical quiescent current of 200µA per channel. Key specifications include a low input bias current of 1 pA and a slew rate of 2.4V/µs. The device is supplied in an 8-TVSP package, suitable for surface mount applications. This component is commonly utilized in instrumentation and buffer amplifier circuits across various industrial applications. It is provided on tape and reel for automated assembly.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-VSSOP, 8-MSOP (0.110"", 2.80mm Width) |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | CMOS |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 200µA |
| Slew Rate | 2.4V/µs |
| Gain Bandwidth Product | 1 MHz |
| Current - Input Bias | 1 pA |
| Voltage - Input Offset | 2 mV |
| Supplier Device Package | 8-TVSP |
| Number of Circuits | 2 |
| Voltage - Supply Span (Min) | 1 V |
| Voltage - Supply Span (Max) | 5.5 V |
