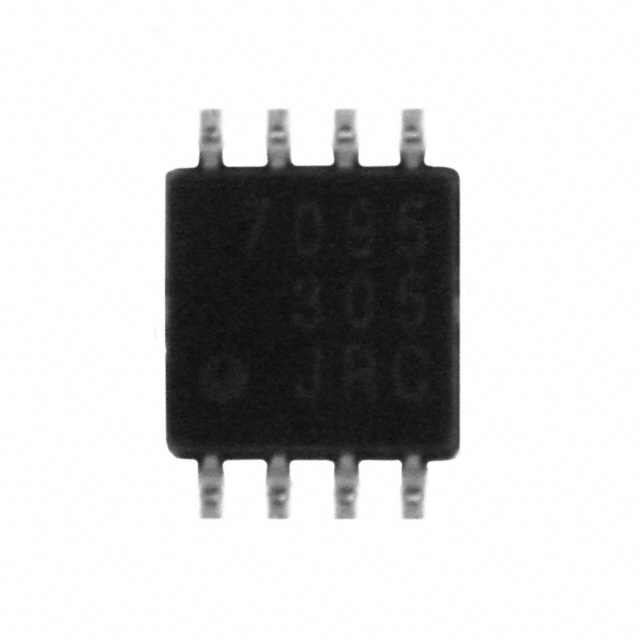

NJU7095RB1-TE1
IC CMOS 2 CIRCUIT 8TVSPManufacturer: Nisshinbo Micro Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
The Nisshinbo Micro Devices Inc. NJU7095RB1-TE1 is a 2-circuit CMOS amplifier featuring rail-to-rail output and input capabilities. With a gain bandwidth product of 1 MHz and a slew rate of 1V/µs, this component is suitable for general-purpose amplification tasks. The device operates from a single supply voltage range of 1V to 5.5V, with a typical quiescent current of 80µA. Input bias current is maintained at a low 1 pA, and the input offset voltage is 2 mV. Housed in an 8-TVSP package, the NJU7095RB1-TE1 is designed for surface mounting and is supplied on tape and reel. This amplifier finds application in instrumentation, industrial, and consumer electronics where low power consumption and wide dynamic range are critical. The operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-VSSOP, 8-MSOP (0.110"", 2.80mm Width) |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | CMOS |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 80µA |
| Slew Rate | 1V/µs |
| Gain Bandwidth Product | 1 MHz |
| Current - Input Bias | 1 pA |
| Voltage - Input Offset | 2 mV |
| Supplier Device Package | 8-TVSP |
| Number of Circuits | 2 |
| Voltage - Supply Span (Min) | 1 V |
| Voltage - Supply Span (Max) | 5.5 V |
