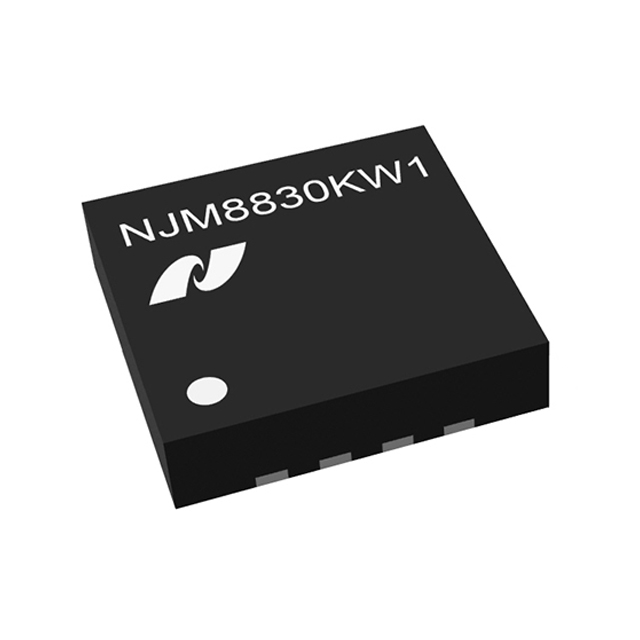

NJM8830KW1-TE3
ULTRALOW DISTORTION, ULTRALOW NOManufacturer: Nisshinbo Micro Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Nisshinbo Micro Devices Inc. NJM8830KW1-TE3 is a dual-channel audio amplifier featuring ultralow distortion and noise. This rail-to-rail output device operates from a 4V to 15V supply span with a typical quiescent current of 6.5mA per channel. It boasts a 90 MHz gain bandwidth product and a 30V/µs slew rate, making it suitable for demanding audio applications. The low input bias current of 150 nA and input offset voltage of 500 µV contribute to its precise signal amplification. With an output current capability of 100 mA per channel, it effectively drives loads in instrumentation and audio systems. The component is supplied in an 8-WFDFN exposed pad package (DFN8-W1/ESON8-W1) for surface mounting and operates across a temperature range of -40°C to 125°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 32 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-WFDFN Exposed Pad |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | Audio |
| Operating Temperature | -40°C ~ 125°C |
| Current - Supply | 6.5mA (x2 Channels) |
| Slew Rate | 30V/µs |
| Gain Bandwidth Product | 90 MHz |
| Current - Input Bias | 150 nA |
| Voltage - Input Offset | 500 µV |
| Supplier Device Package | DFN8-W1 (ESON8-W1) |
| Number of Circuits | 2 |
| Current - Output / Channel | 100 mA |
| Voltage - Supply Span (Min) | 4 V |
