NJM844G-TE2
IC OPAMP GP 4 CIRCUIT 14SOPManufacturer: Nisshinbo Micro Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More

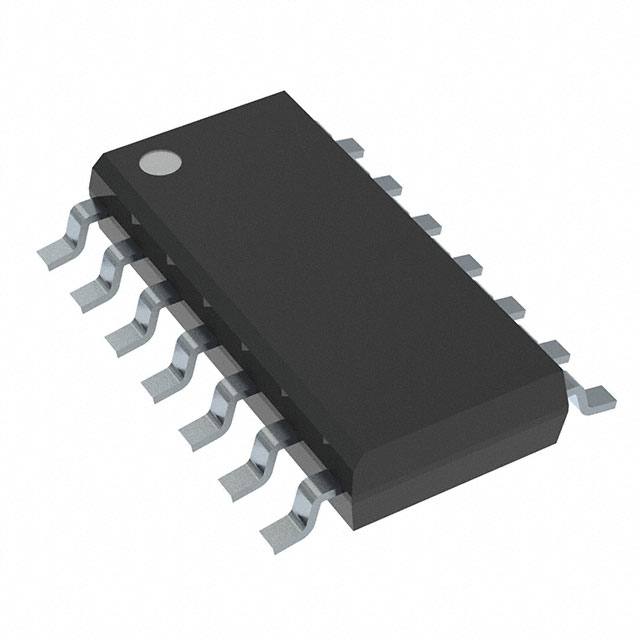

Nisshinbo Micro Devices Inc. NJM844G-TE2 is a quad general-purpose operational amplifier. This surface-mount component, housed in a 14-SOP package, features a gain bandwidth product of 3.5 MHz and a slew rate of 8.5V/µs. It operates with a supply voltage span from 3V to 36V and draws a quiescent current of 8.8mA. The input bias current is rated at 120 nA, with an input offset voltage of 800 µV. Each channel can deliver an output current of 45 mA. This device is suitable for applications in industrial automation, consumer electronics, and medical instrumentation. Packaged on tape and reel, it is designed for efficient automated assembly.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-SOIC (0.154"", 3.90mm Width) |
| Output Type | - |
| Mounting Type | Surface Mount |
| Amplifier Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C |
| Current - Supply | 8.8mA |
| Slew Rate | 8.5V/µs |
| Gain Bandwidth Product | 3.5 MHz |
| Current - Input Bias | 120 nA |
| Voltage - Input Offset | 800 µV |
| Supplier Device Package | 14-SOP |
| Number of Circuits | 4 |
| Current - Output / Channel | 45 mA |
| Voltage - Supply Span (Min) | 3 V |
| Voltage - Supply Span (Max) | 36 V |
