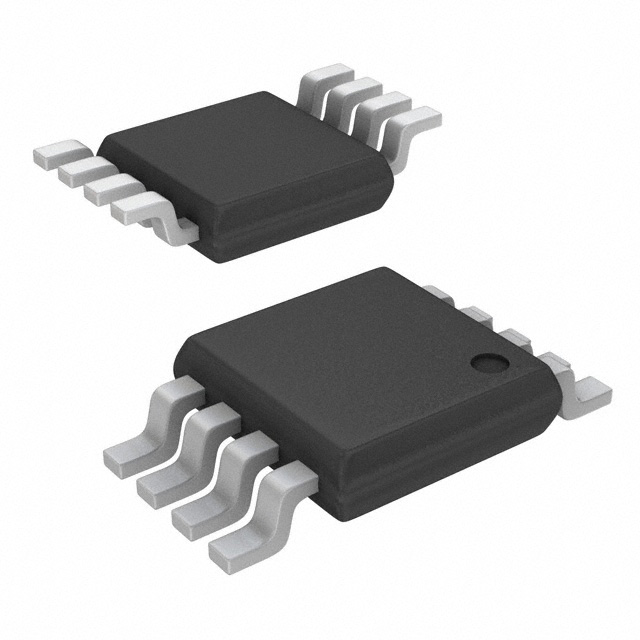

NJM8202V-TE1
IC OPAMP GP 2 CIRCUIT 8SSOPManufacturer: Nisshinbo Micro Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Nisshinbo Micro Devices Inc. NJM8202V-TE1 is a general-purpose operational amplifier featuring two independent circuits in a compact 8-SSOP package. This device offers rail-to-rail output capabilities and differential inputs, making it suitable for a wide range of applications in instrumentation and signal conditioning. With a gain bandwidth product of 10 MHz and a slew rate of 3.5V/µs, it provides efficient amplification for signals within its operating temperature range of -40°C to 85°C. The NJM8202V-TE1 operates from a supply voltage span of 2.5V to 14V and draws a quiescent current of 4mA. Input bias current is a low 100 nA, and the input offset voltage is 1 mV. This component is commonly utilized in industrial automation, consumer electronics, and automotive systems requiring precise analog signal processing.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-LSSOP (0.173"", 4.40mm Width) |
| Output Type | Differential, Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | General Purpose |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 4mA |
| Slew Rate | 3.5V/µs |
| Gain Bandwidth Product | 10 MHz |
| Current - Input Bias | 100 nA |
| Voltage - Input Offset | 1 mV |
| Supplier Device Package | 8-SSOP |
| Number of Circuits | 2 |
| Voltage - Supply Span (Min) | 2.5 V |
| Voltage - Supply Span (Max) | 14 V |
