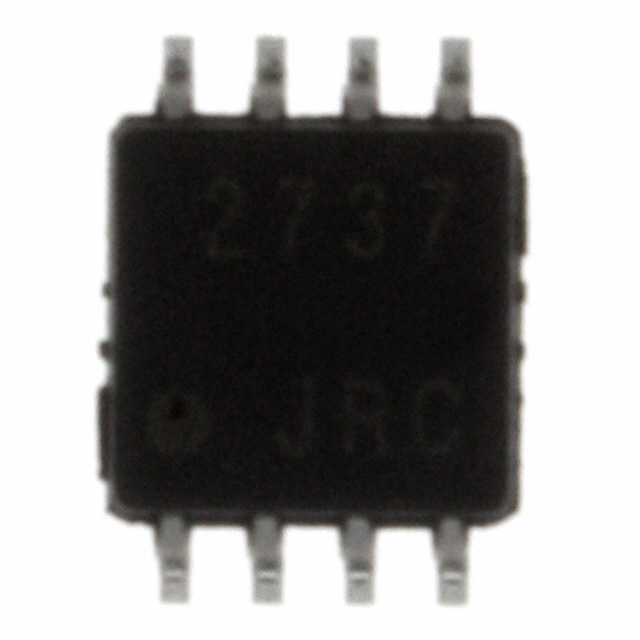

NJM2737RB1-TE1#
IC OPAMP GP 2 CIRCUIT 8TVSPManufacturer: Nisshinbo Micro Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Nisshinbo Micro Devices Inc. NJM2737RB1-TE1- is a dual-circuit, general-purpose operational amplifier featuring rail-to-rail output. This device operates with a supply voltage range of 1.8V to 6V, drawing a quiescent current of 1.2mA. It boasts a gain bandwidth product of 3.1 MHz and a slew rate of 0.7V/µs. The input bias current is 200 nA with a voltage offset of 1 mV. Designed for surface mounting, it is provided in an 8-TVSP package, which corresponds to an 8-VSSOP or 8-MSOP configuration. The NJM2737RB1-TE1- is suitable for applications in instrumentation and general-purpose amplification, including buffer amplifier configurations, across an operating temperature range of -40°C to 85°C.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-VSSOP, 8-MSOP (0.110"", 2.80mm Width) |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | General Purpose |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 1.2mA |
| Slew Rate | 0.7V/µs |
| Gain Bandwidth Product | 3.1 MHz |
| Current - Input Bias | 200 nA |
| Voltage - Input Offset | 1 mV |
| Supplier Device Package | 8-TVSP |
| Number of Circuits | 2 |
| Voltage - Supply Span (Min) | 1.8 V |
| Voltage - Supply Span (Max) | 6 V |
Request a Quote
