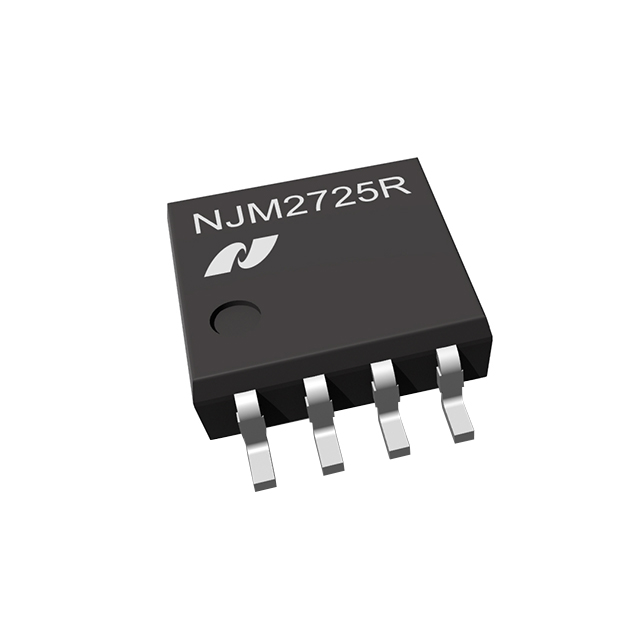

NJM2725R-TE1
160MHZ, 1.4NV/HZ, OPERATIONAL AMManufacturer: Nisshinbo Micro Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
The Nisshinbo Micro Devices Inc. NJM2725R-TE1 is a dual-channel voltage feedback operational amplifier designed for high-speed signal processing. Featuring a 160 MHz gain bandwidth product and a 15V/µs slew rate, this device is suitable for applications requiring precise amplification. It offers a low input voltage noise density of 1.4 nV/vHz and a low input bias current of 4.6 µA. The output stage is a push-pull configuration, capable of delivering up to 30 mA per channel. Operating from a supply voltage range of 4V to 10V, the NJM2725R-TE1 consumes a total of 4mA (x2 channels). This component is housed in an 8-VSP package, specifically an 8-LSSOP/8-MSOP (0.110", 2.80mm width), and is supplied in a Tape & Reel (TR) format. It is engineered for operation across an industrial temperature range of -40°C to 125°C. Typical applications include instrumentation, buffer amplifiers, and high-frequency signal conditioning circuits.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-LSSOP, 8-MSOP (0.110"", 2.80mm Width) |
| Output Type | Push-Pull |
| Mounting Type | Surface Mount |
| Amplifier Type | Voltage Feedback |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Current - Supply | 4mA (x2 Channels) |
| Slew Rate | 15V/µs |
| Gain Bandwidth Product | 160 MHz |
| Current - Input Bias | 4.6 µA |
| Voltage - Input Offset | 500 µV |
| Supplier Device Package | 8-VSP |
| Number of Circuits | 2 |
| Current - Output / Channel | 30 mA |
| Voltage - Supply Span (Min) | 4 V |
| Voltage - Supply Span (Max) | 10 V |
