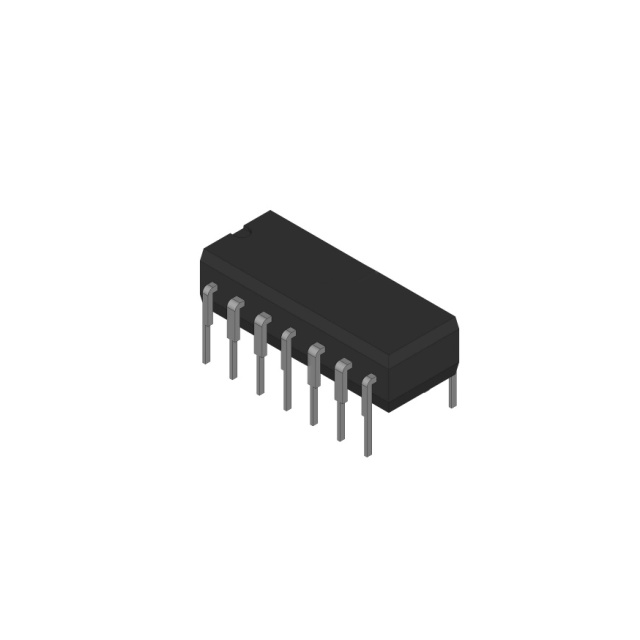

NJM2058D
IC OPAMP GP 4 CIRCUIT 14DIPManufacturer: Nisshinbo Micro Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Nisshinbo Micro Devices Inc. NJM2058D is a quad general-purpose operational amplifier housed in a 14-DIP package. This component offers a 1V/µs slew rate and a low input bias current of 20 nA, making it suitable for a variety of analog signal processing applications. The device operates with a supply voltage range from 8V to 36V and consumes approximately 7mA of supply current. Key specifications include a 500 µV input offset voltage. The NJM2058D is designed for through-hole mounting and is supplied in tube packaging. Its characteristics lend themselves to use in industrial automation, consumer electronics, and audio processing systems.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-DIP (0.300"", 7.62mm) |
| Output Type | - |
| Mounting Type | Through Hole |
| Amplifier Type | General Purpose |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 7mA |
| Slew Rate | 1V/µs |
| Current - Input Bias | 20 nA |
| Voltage - Input Offset | 500 µV |
| Supplier Device Package | 14-DIP |
| Number of Circuits | 4 |
| Voltage - Supply Span (Min) | 8 V |
| Voltage - Supply Span (Max) | 36 V |
