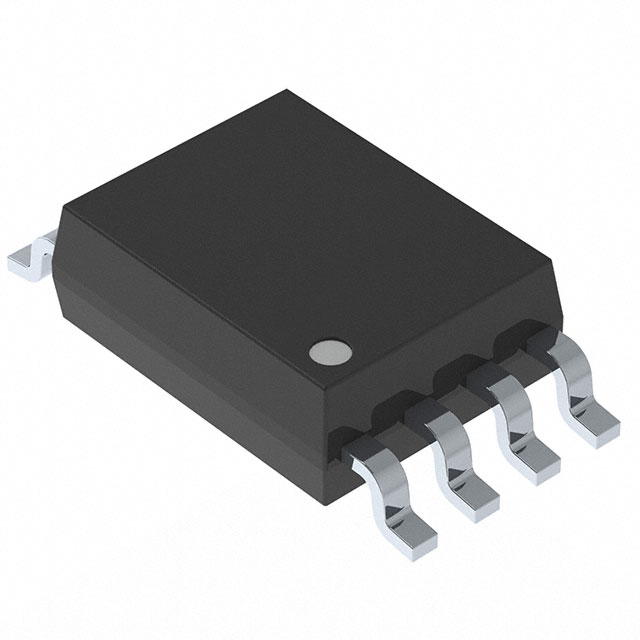

NJM062CG-TE2
IC OPAMP JFET 2 CIRCUIT 8SOPManufacturer: Nisshinbo Micro Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Nisshinbo Micro Devices Inc. NJM062CG-TE2 is a dual J-FET input operational amplifier. This component offers a typical input bias current of 30 pA and a low supply current of 200 µA, making it suitable for applications prioritizing low power consumption and minimal signal loading. The NJM062CG-TE2 features a gain bandwidth product of 1 MHz and a slew rate of 3.5 V/µs, providing adequate performance for general-purpose amplification. It operates over a wide supply voltage range from 4 V to 36 V and is specified for operation between -40°C and 105°C. The device is housed in an 8-SOP package, with the -TE2 designation indicating Tape & Reel packaging for automated assembly. This operational amplifier finds application in various instrumentation and buffering circuits.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) |
| Output Type | - |
| Mounting Type | Surface Mount |
| Amplifier Type | J-FET |
| Operating Temperature | -40°C ~ 105°C |
| Current - Supply | 200µA |
| Slew Rate | 3.5V/µs |
| Gain Bandwidth Product | 1 MHz |
| Current - Input Bias | 30 pA |
| Voltage - Input Offset | 3 mV |
| Supplier Device Package | 8-SOP |
| Number of Circuits | 2 |
| Voltage - Supply Span (Min) | 4 V |
| Voltage - Supply Span (Max) | 36 V |
