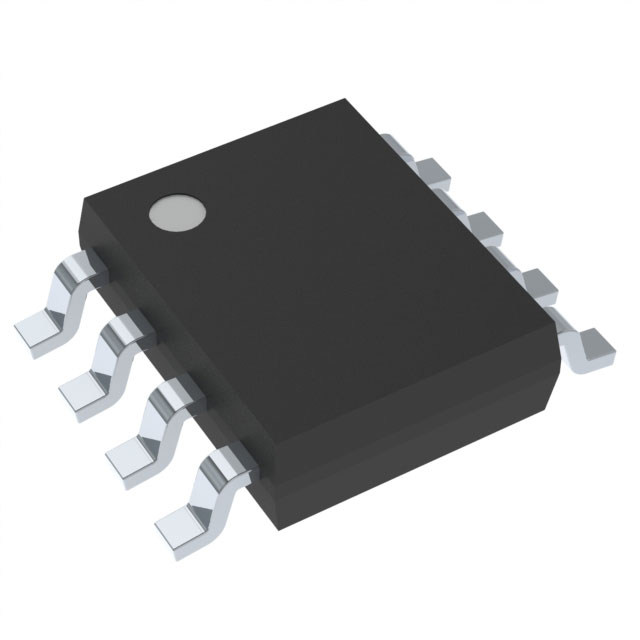

MUSES8920E
IC AUDIO 2 CIRCUIT 8SOPManufacturer: Nisshinbo Micro Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Nisshinbo Micro Devices Inc. MUSES8920E is a high-performance dual-channel audio operational amplifier. This device, housed in an 8-SOP package, offers a 11 MHz gain bandwidth product and a 25 V/µs slew rate, enabling superior audio reproduction. With a low input bias current of 5 pA and an input offset voltage of 800 µV, it minimizes signal distortion. The MUSES8920E operates from a wide supply voltage range of 7 V to 34 V and consumes a quiescent current of 9 mA per channel. Its robust design and excellent audio characteristics make it suitable for demanding applications in consumer electronics, automotive audio, and professional audio equipment. The component is supplied in tube packaging for efficient inventory management and automated assembly processes.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) |
| Output Type | - |
| Mounting Type | Surface Mount |
| Amplifier Type | Audio |
| Operating Temperature | -40°C ~ 125°C |
| Current - Supply | 9mA |
| Slew Rate | 25V/µs |
| Gain Bandwidth Product | 11 MHz |
| Current - Input Bias | 5 pA |
| Voltage - Input Offset | 800 µV |
| Supplier Device Package | 8-SOP |
| Number of Circuits | 2 |
| Voltage - Supply Span (Min) | 7 V |
| Voltage - Supply Span (Max) | 34 V |
