MUSES05-TE3
HIGH-QUALITY SOUND, J-FET INPUT,Manufacturer: Nisshinbo Micro Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More

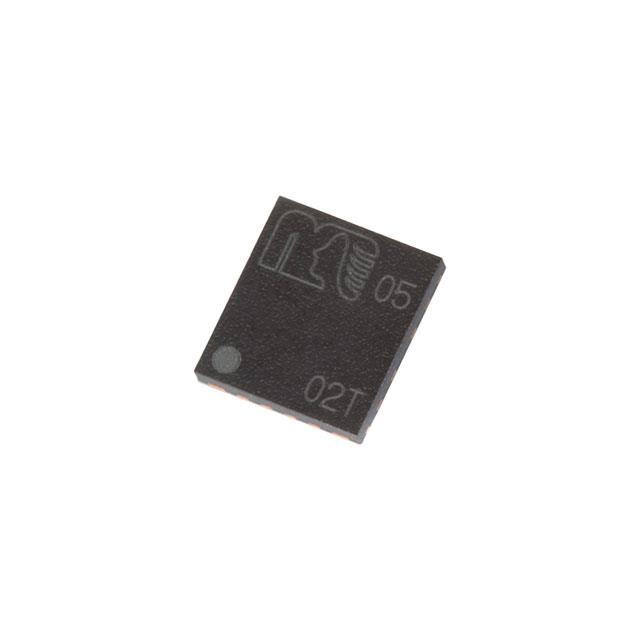

Nisshinbo Micro Devices Inc. MUSES05-TE3 is a single-circuit J-FET input audio amplifier. This surface mount component, delivered in Tape & Reel (TR) packaging, features a DFN12-CA8 (ESON12-CA8) package with an exposed pad. It offers a gain bandwidth product of 12 MHz and a slew rate of 50V/µs. The MUSES05-TE3 operates with a supply current of 5.8mA, a minimum supply voltage span of 7V, and a maximum of 36V. Input bias current is rated at 50 pA, with an input offset voltage of 20 mV. This high-quality sound amplifier is suitable for applications in professional audio equipment and automotive audio systems. It operates across an extended temperature range of -40°C to 105°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-VDFN Exposed Pad |
| Output Type | - |
| Mounting Type | Surface Mount |
| Amplifier Type | Audio |
| Operating Temperature | -40°C ~ 105°C |
| Current - Supply | 5.8mA |
| Slew Rate | 50V/µs |
| Gain Bandwidth Product | 12 MHz |
| Current - Input Bias | 50 pA |
| Voltage - Input Offset | 20 mV |
| Supplier Device Package | DFN12-CA8 (ESON12-CA8) |
| Number of Circuits | 1 |
| Voltage - Supply Span (Min) | 7 V |
| Voltage - Supply Span (Max) | 36 V |
