MUSES01
IC AUDIO 2 CIRCUIT 8DIPManufacturer: Nisshinbo Micro Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Audio Amplifier 2 Circuit 8-DIP
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 32 week(s)Product Status: ActivePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-DIP (0.300"", 7.62mm) |
| Output Type | - |
| Mounting Type | Through Hole |
| Amplifier Type | Audio |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 8.5mA |
| Slew Rate | 12V/µs |
| Gain Bandwidth Product | 3.3 MHz |
| Current - Input Bias | 200 pA |
| Voltage - Input Offset | 800 µV |
| Supplier Device Package | 8-DIP |
| Number of Circuits | 2 |
| Current - Output / Channel | 25 mA |
| Voltage - Supply Span (Min) | 18 V |
| Voltage - Supply Span (Max) | 32 V |
Request a Quote
Clients Also Buy

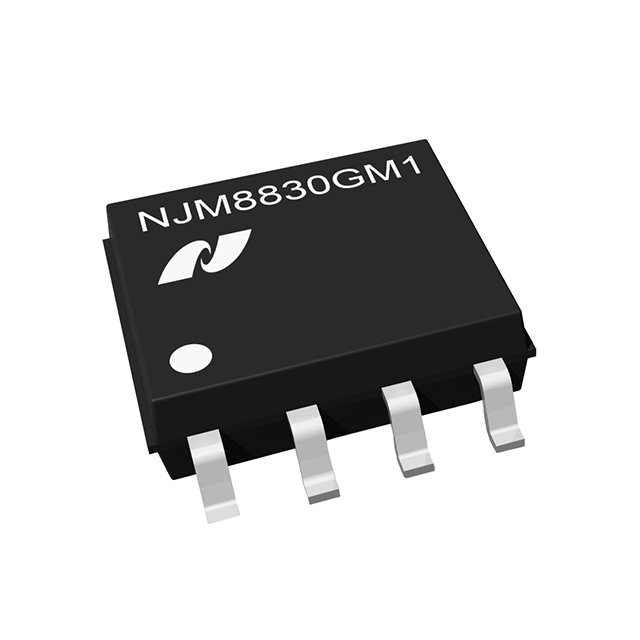

NJM8830GM1-TE1
ULTRALOW DISTORTION, ULTRALOW NO

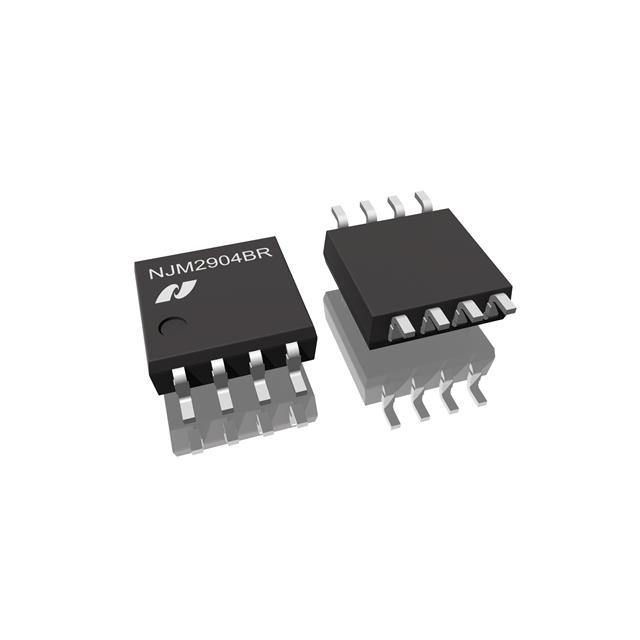

NJM2904BRT1-TE1
