NJW4301D
IC HALF BRIDGE DRIVER 16DIPManufacturer: Nisshinbo Micro Devices Inc.
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
Nisshinbo Micro Devices Inc. NJW4301D is a Bi-CMOS half-bridge driver designed for DC motor control and general-purpose applications. This component, supplied in a 16-DIP (0.300" wide) package, offers an output configuration supporting a half-bridge topology. It operates with a supply voltage range of 4V to 12V, accommodating inductive load types. Key features include over-temperature fault protection and a logic-level interface for seamless integration into system designs. The NJW4301D is suitable for use in automotive, industrial automation, and consumer electronics sectors. This device is packaged in a tube.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 16-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Interface | Logic |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Half Bridge (4) |
| Voltage - Supply | 4V ~ 12V |
| Rds On (Typ) | - |
| Applications | DC Motors, General Purpose |
| Current - Output / Channel | - |
| Current - Peak Output | - |
| Technology | Bi-CMOS |
| Voltage - Load | 4V ~ 12V |
| Supplier Device Package | 16-DIP |
| Fault Protection | Over Temperature |
| Load Type | Inductive |
Request a Quote
Clients Also Buy
NJW4814MLE-TE1
IC HALF BRIDGE DRIVER 2A 24EQFN

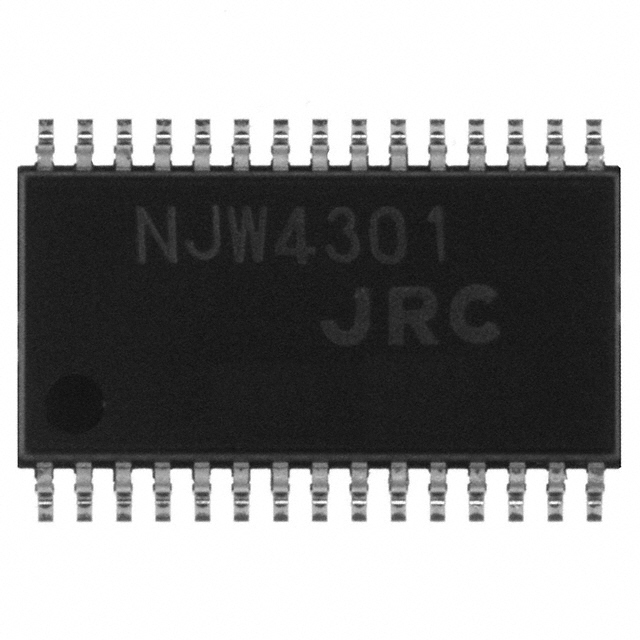

NJW4301M
