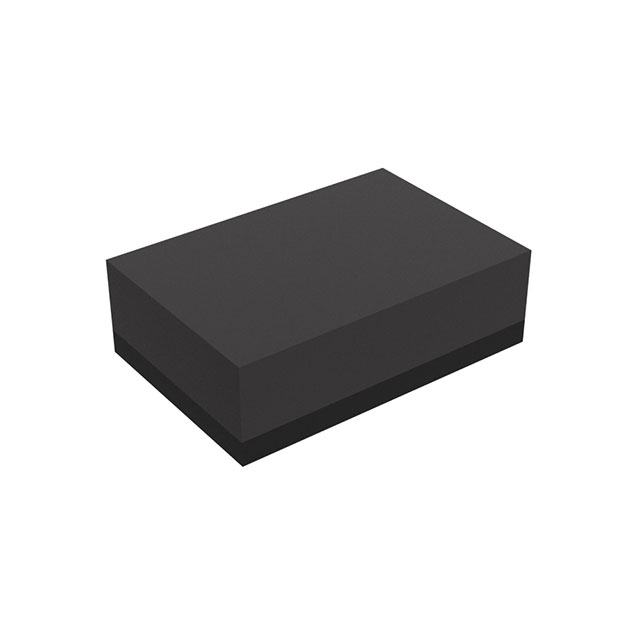

RP502Z153B-E2-F
IC REG BUCK 1.5V 6WLCSPManufacturer: Nisshinbo Micro Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
Nisshinbo Micro Devices Inc. RP502Z153B-E2-F is a highly efficient buck switching regulator IC featuring a fixed 1.5V output voltage from a 2.5V to 5.5V input range. This single-output device operates at a high 3.3MHz switching frequency, enabling the use of smaller external components and contributing to its compact 6-UFBGA, WLCSP package. The RP502x series regulator incorporates a synchronous rectifier for improved efficiency. Its surface mount WLCSP-6-P2 package is supplied on tape and reel. This component is suitable for applications requiring compact, power-efficient voltage conversion in portable electronics and other space-constrained designs. The operating temperature range is -40°C to 85°C.
Additional Information
Series: RP502xRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-UFBGA, WLCSP |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 3.3MHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Buck |
| Supplier Device Package | WLCSP-6-P2 |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | - |
| Voltage - Input (Min) | 2.5V |
| Voltage - Output (Min/Fixed) | 1.5V |
