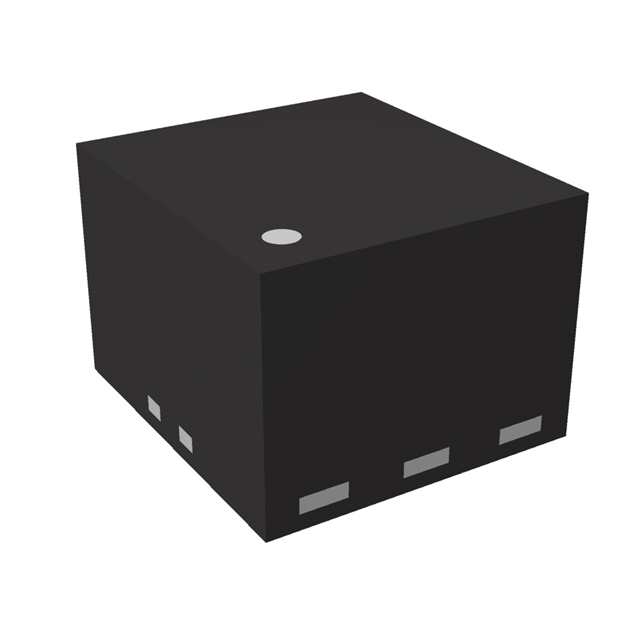

RM590L002D-TR
IC REG BUCK ADJ 400MA 8QFNManufacturer: Nisshinbo Micro Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Nisshinbo Micro Devices Inc. RM590L002D-TR is a high-frequency buck switching regulator designed for efficient power conversion. This adjustable positive output regulator provides up to 400mA of current, with an output voltage range from 0.6V up to 5.5V. Operating with an input voltage range of 2.3V to 5.5V, it features a high switching frequency of 6MHz, enabling the use of smaller external components and reducing overall solution size. The RM590L002D-TR incorporates a synchronous rectifier for enhanced efficiency. Its 8-QFN (2.2x2) package, supplied on tape and reel, is suitable for surface mount applications. This component finds utility in various portable electronics and industrial power management systems where compact size and high efficiency are critical.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-LQFN |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 400mA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 6MHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Buck |
| Supplier Device Package | 8-QFN (2.2x2) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 5.5V |
| Voltage - Input (Min) | 2.3V |
| Voltage - Output (Min/Fixed) | 0.6V |
