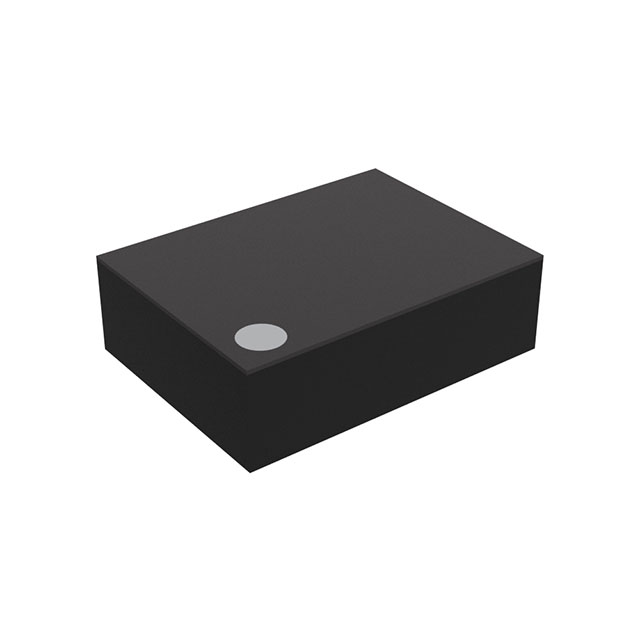

R1287Z003B-E2-F
IC REG BUCK BST 200MA DL 12WLCSPManufacturer: Nisshinbo Micro Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
Buck, Boost Switching Regulator IC Positive and Negative Fixed -5.4V, 5.4V 2 Output 200mA 12-VFBGA, WLCSP
Additional Information
Series: R1287xRoHS Status: RoHS CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-VFBGA, WLCSP |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Function | Step-Up/Inverted |
| Current - Output | 200mA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive and Negative |
| Frequency - Switching | 1MHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Buck, Boost |
| Supplier Device Package | WLCSP-12-P1 |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | - |
| Voltage - Input (Min) | 2.5V |
| Voltage - Output (Min/Fixed) | -5.4V, 5.4V |
Request a Quote
