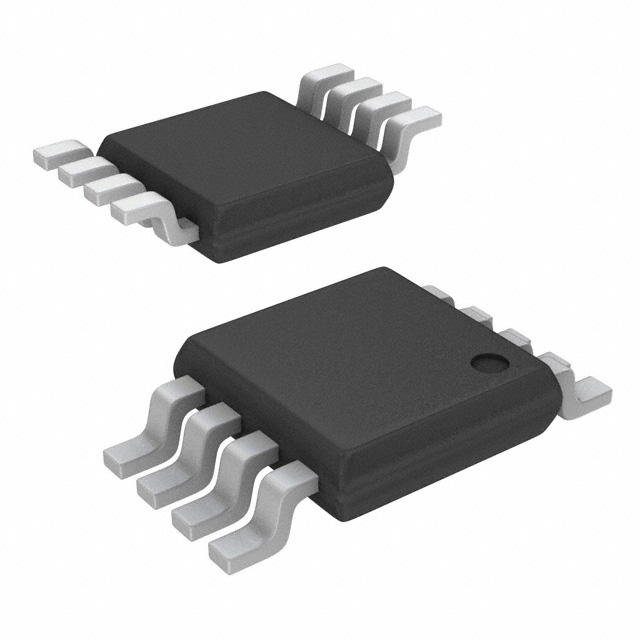

NJW4161R-C-TE1
IC REG BUCK ADJ 1.7A 8MSOPManufacturer: Nisshinbo Micro Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Nisshinbo Micro Devices Inc. NJW4161R-C-TE1 is a positive adjustable buck switching regulator IC designed for efficient DC-DC conversion. This component offers an output current capability of 1.7A, with an adjustable output voltage ranging from 0.8V up to 40V, and an input voltage range of 3.1V to 40V. Featuring a switching frequency adjustable from 50kHz to 1MHz, it provides flexibility in component selection and EMI control. The NJW4161R-C-TE1 utilizes a non-synchronous buck topology and is housed in an 8-MSOP (VSP8) package, suitable for surface mount applications. Its operating temperature range of -40°C to 125°C makes it appropriate for demanding environments. This regulator is commonly employed in power management solutions across automotive, industrial, and consumer electronics sectors.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-LSSOP, 8-MSOP (0.110"", 2.80mm Width) |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 1.7A |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Frequency - Switching | 50kHz ~ 1MHz |
| Voltage - Input (Max) | 40V |
| Topology | Buck |
| Supplier Device Package | 8-MSOP (VSP8) |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | 40V |
| Voltage - Input (Min) | 3.1V |
| Voltage - Output (Min/Fixed) | 0.8V |
