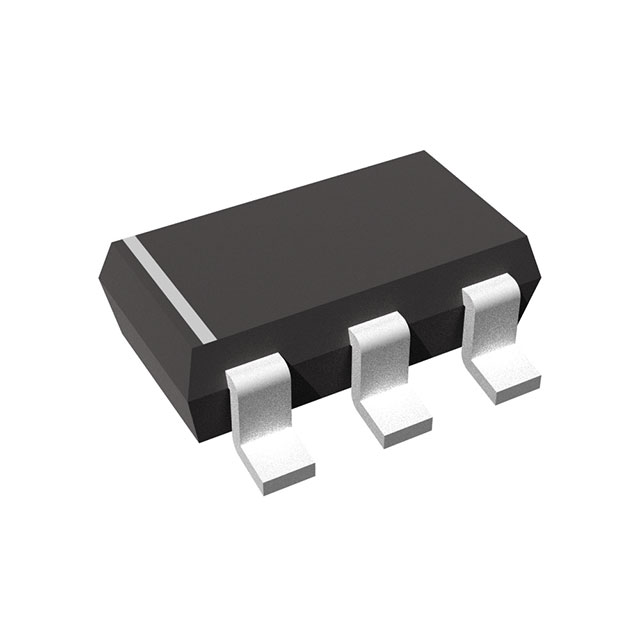

NJU7665AF-TE1#
IC REG CHARGE PUMP INV SOT23-5Manufacturer: Nisshinbo Micro Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
Charge Pump Switching Regulator IC Negative Fixed -Vin 1 Output 500µA SC-74A, SOT-753
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-74A, SOT-753 |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Ratiometric |
| Current - Output | 500µA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Negative |
| Frequency - Switching | 7.5kHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Charge Pump |
| Supplier Device Package | SOT-23-5 (MTP5) |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | - |
| Voltage - Input (Min) | 1.5V |
| Voltage - Output (Min/Fixed) | -Vin |
Request a Quote
