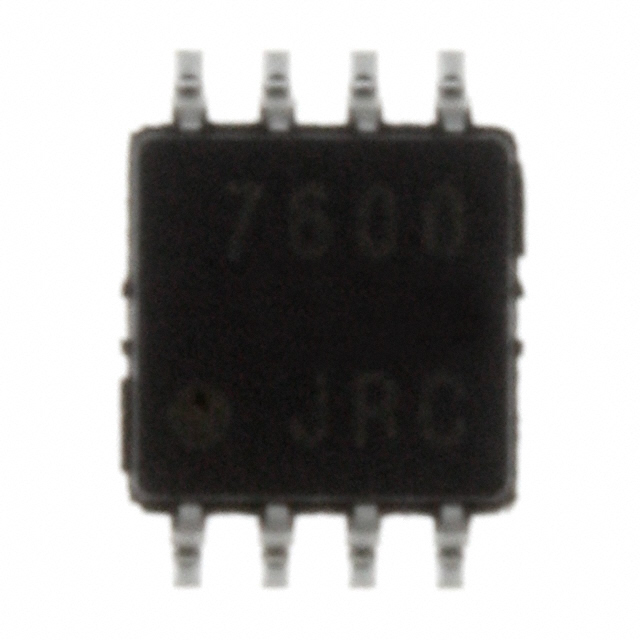

NJU7600RB1-TE1
IC REG BST FLYBCK ADJ 8TVSPManufacturer: Nisshinbo Micro Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Nisshinbo Micro Devices Inc. NJU7600RB1-TE1 is a versatile switching regulator IC designed for step-up and step-up/step-down applications. This component features an adjustable positive output and operates within an input voltage range of 2.2V to 8V. Its switching frequency is configurable between 300kHz and 1MHz, offering flexibility in power supply design. The NJU7600RB1-TE1 is housed in an 8-VSSOP, 8-MSOP (0.110", 2.80mm Width) package, suitable for surface mounting. This device is utilized in various industrial sectors, including consumer electronics and communication systems, where efficient power conversion is critical. The component is supplied on a tape and reel for automated assembly.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-VSSOP, 8-MSOP (0.110"", 2.80mm Width) |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Up, Step-Up/Step-Down |
| Current - Output | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 300kHz ~ 1MHz |
| Voltage - Input (Max) | 8V |
| Topology | Boost, Flyback |
| Supplier Device Package | 8-TVSP |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | - |
| Voltage - Input (Min) | 2.2V |
| Voltage - Output (Min/Fixed) | - |
