R1280D002A-TR-FE
PWM STEP-UP/INVERTING DCDC CONTRManufacturer: Nisshinbo Micro Devices Inc.
Categories: DC DC Switching Controllers
Quality Control: Learn More

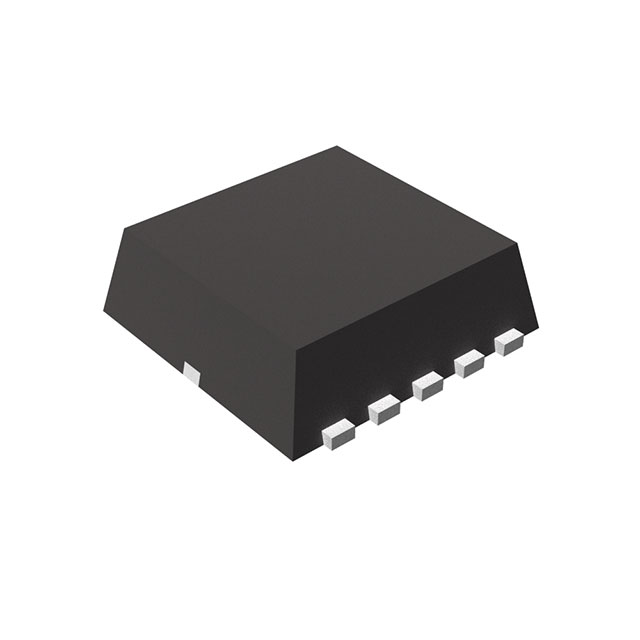

The Nisshinbo Micro Devices Inc. R1280D002A-TR-FE is a PWM step-up DC-DC controller IC designed for efficient power conversion. Operating with a supply voltage range of 2.5V to 5.5V, this device features a fixed switching frequency of 700kHz, enabling compact external component selection. Its boost topology and positive output configuration make it suitable for applications requiring voltage elevation. The R1280D002A-TR-FE includes an Enable control feature and is housed in a 10-SON (2.9x2.8) package, supplied on tape and reel. This component finds application in various electronic systems, including portable devices and power management solutions.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-VFDFN |
| Output Type | PWM |
| Mounting Type | Surface Mount |
| Function | Step-Up |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Positive |
| Frequency - Switching | 700kHz |
| Topology | Boost |
| Voltage - Supply (Vcc/Vdd) | 2.5V ~ 5.5V |
| Supplier Device Package | 10-SON (2.9x2.8) |
| Synchronous Rectifier | No |
| Control Features | Enable |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | - |
| Clock Sync | No |
| Number of Outputs | 2 |
