NJU77242RB1-TE1
IC COMPARATOR 2 CMOS 8TVSPManufacturer: Nisshinbo Micro Devices Inc.
Categories: Comparators
Quality Control: Learn More

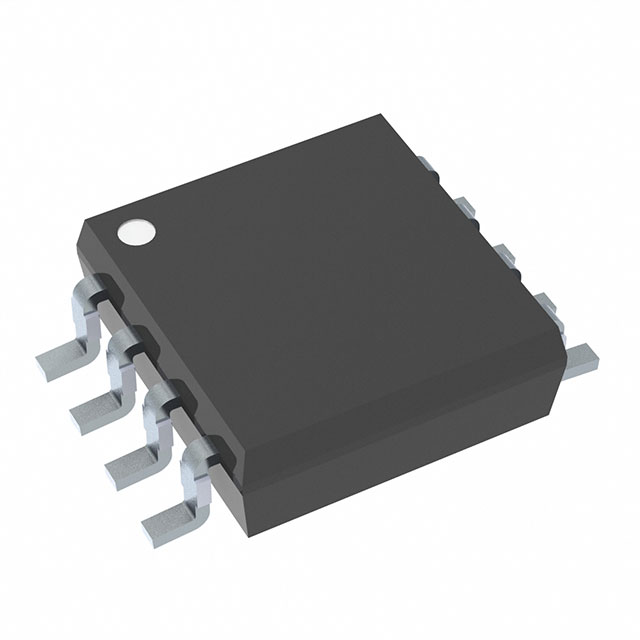

The Nisshinbo Micro Devices Inc. NJU77242RB1-TE1 is a dual CMOS comparator featuring an open-drain output configuration. This component is housed in an 8-TVSP package (8-VSSOP, 8-MSOP (0.110", 2.80mm Width)) and is supplied on a Tape & Reel (TR). With a wide operating voltage range from 1.8V to 5.5V single or ±0.9V to ±2.75V dual, it offers excellent power efficiency with a maximum quiescent current of 14µA. Key performance metrics include a typical CMRR of 70dB and PSRR of 85dB, along with a low input bias current of 1pA at 3V. The propagation delay is typically 840ns. This device is suitable for applications in industrial automation, consumer electronics, and battery-powered systems requiring precise voltage level detection.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-VSSOP, 8-MSOP (0.110"", 2.80mm Width) |
| Output Type | Open-Drain |
| Mounting Type | Surface Mount |
| Number of Elements | 2 |
| Type | CMOS |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply, Single/Dual (±) | 1.8V ~ 5.5V, ±0.9V ~ 2.75V |
| Supplier Device Package | 8-TVSP |
| Propagation Delay (Max) | 840ns (Typ) |
| Current - Quiescent (Max) | 14µA |
| Voltage - Input Offset (Max) | 7mV @ 3V |
| Current - Input Bias (Max) | 1pA @ 3V |
| Current - Output (Typ) | - |
| CMRR, PSRR (Typ) | 70dB CMRR, 85dB PSRR |
| Hysteresis | - |
