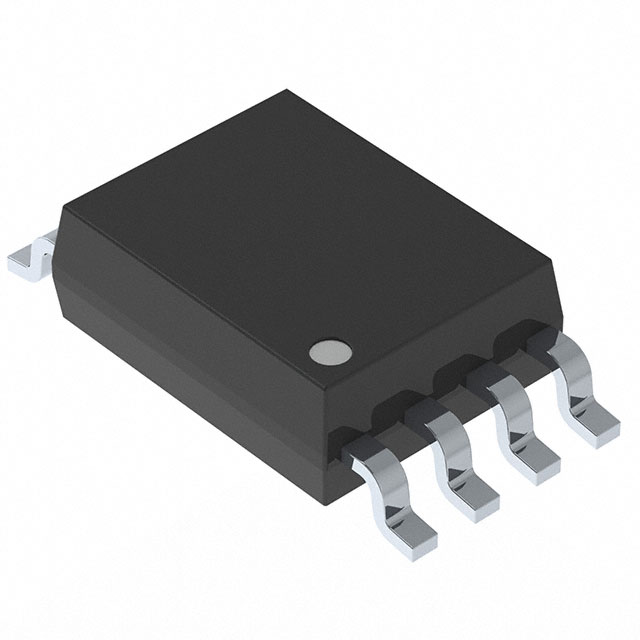

NJM393CG-TE2
IC COMPARATOR 2 GEN PUR 8SOPManufacturer: Nisshinbo Micro Devices Inc.
Categories: Comparators
Quality Control: Learn More
The Nisshinbo Micro Devices Inc. NJM393CG-TE2 is a dual general-purpose comparator designed for broad application across various electronic systems. This component offers a wide supply voltage range, supporting single supplies from 2V to 36V or dual supplies from ±1V to ±18V. Featuring an open-collector output, it is compatible with CMOS, DTL, ECL, MOS, and TTL logic families, providing significant design flexibility. The NJM393CG-TE2 exhibits a low input bias current of 0.25µA at 5V and a typical output current of 16mA at 5V. Its 8-SOP package, suitable for surface mounting, makes it a practical choice for compact designs. This comparator is commonly utilized in power supplies, instrumentation, and control systems. The device operates within an ambient temperature range of -40°C to 85°C and is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) |
| Output Type | CMOS, DTL, ECL, MOS, Open-Collector, TTL |
| Mounting Type | Surface Mount |
| Number of Elements | 2 |
| Type | General Purpose |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Single/Dual (±) | 2V ~ 36V, ±1V ~ 18V |
| Supplier Device Package | 8-SOP |
| Propagation Delay (Max) | - |
| Current - Quiescent (Max) | 2.5mA |
| Voltage - Input Offset (Max) | 5mV @ 5V |
| Current - Input Bias (Max) | 0.25µA @ 5V |
| Current - Output (Typ) | 16mA @ 5V |
| CMRR, PSRR (Typ) | - |
| Hysteresis | - |
