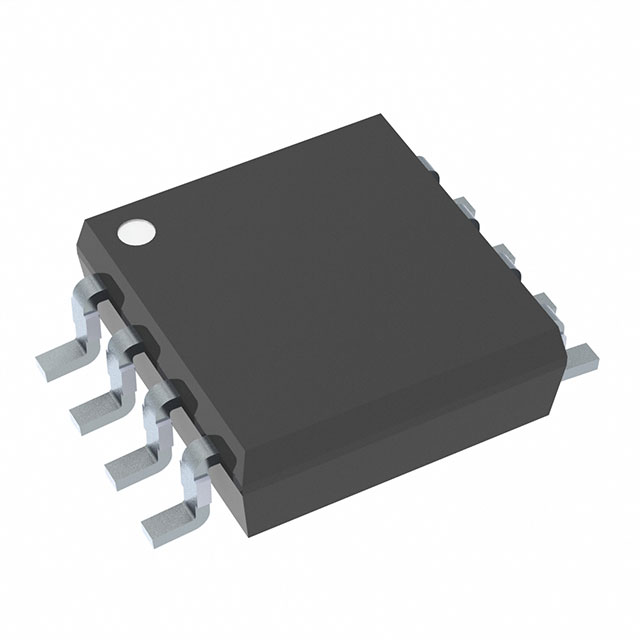

NJM2903CRB1-TE1
IC COMPARATOR 2 GEN PUR 8TVSPManufacturer: Nisshinbo Micro Devices Inc.
Categories: Comparators
Quality Control: Learn More
The Nisshinbo Micro Devices Inc. NJM2903CRB1-TE1 is a dual general-purpose comparator featuring MOS, open-collector, and TTL compatible outputs. This device operates from a wide supply voltage range of 2V to 36V, accommodating both single and dual supply configurations. It exhibits a low input bias current of 0.25µA at 5V and a typical output current of 16mA at 5V. The NJM2903CRB1-TE1 is housed in an 8-TVSP package, suitable for surface mounting, and operates within an extended temperature range of -40°C to 125°C. This component is commonly utilized in industrial control, consumer electronics, and automotive applications where precise voltage level detection and signal conditioning are critical. The device is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-VSSOP, 8-MSOP (0.110"", 2.80mm Width) |
| Output Type | MOS, Open-Collector, TTL |
| Mounting Type | Surface Mount |
| Number of Elements | 2 |
| Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply, Single/Dual (±) | 2V ~ 36V |
| Supplier Device Package | 8-TVSP |
| Propagation Delay (Max) | - |
| Current - Quiescent (Max) | 2.5mA |
| Voltage - Input Offset (Max) | 5mV @ 5V |
| Current - Input Bias (Max) | 0.25µA @ 5V |
| Current - Output (Typ) | 16mA @ 5V |
| CMRR, PSRR (Typ) | - |
| Hysteresis | - |
