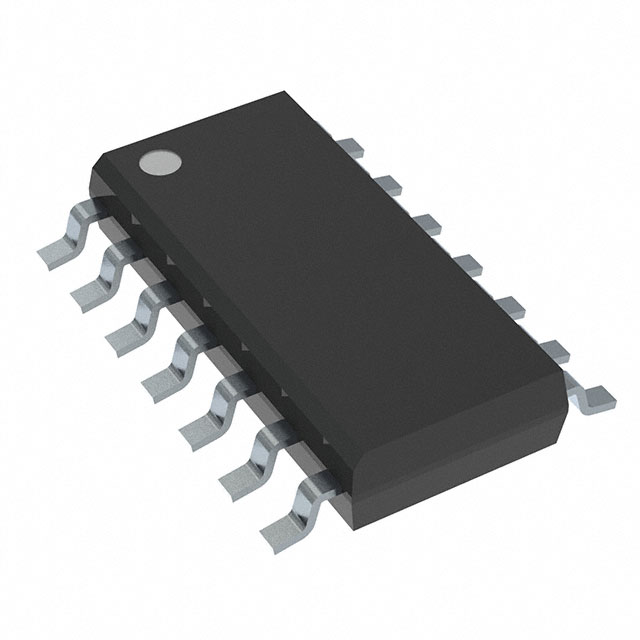

NJM2901CG-TE2
IC COMPARATOR 4 GEN PUR 14SOPManufacturer: Nisshinbo Micro Devices Inc.
Categories: Comparators
Quality Control: Learn More
Nisshinbo Micro Devices Inc. NJM2901CG-TE2 is a quadruple general-purpose voltage comparator featuring MOS, open-collector, and TTL compatible outputs. This device operates from a wide supply voltage range of 2V to 36V for single supply or ±1V to ±18V for dual supplies. It offers a low input bias current of 0.25µA at 5V and a typical output current of 16mA at 5V. The NJM2901CG-TE2 is housed in a 14-SOIC (0.154", 3.90mm Width) package, suitable for surface mount applications and supplied in tape and reel. Designed for versatile use, this component finds application in various industrial and consumer electronics sectors requiring precise voltage comparison functions. The maximum quiescent current is rated at 2.5mA, and it operates within an ambient temperature range of -40°C to 125°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-SOIC (0.154"", 3.90mm Width) |
| Output Type | MOS, Open-Collector, TTL |
| Mounting Type | Surface Mount |
| Number of Elements | 4 |
| Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply, Single/Dual (±) | 2V ~ 36V, ±1V ~ 18V |
| Supplier Device Package | 14-SOP |
| Propagation Delay (Max) | - |
| Current - Quiescent (Max) | 2.5mA |
| Voltage - Input Offset (Max) | 5mV @ 5V |
| Current - Input Bias (Max) | 0.25µA @ 5V |
| Current - Output (Typ) | 16mA @ 5V |
| CMRR, PSRR (Typ) | - |
| Hysteresis | - |
