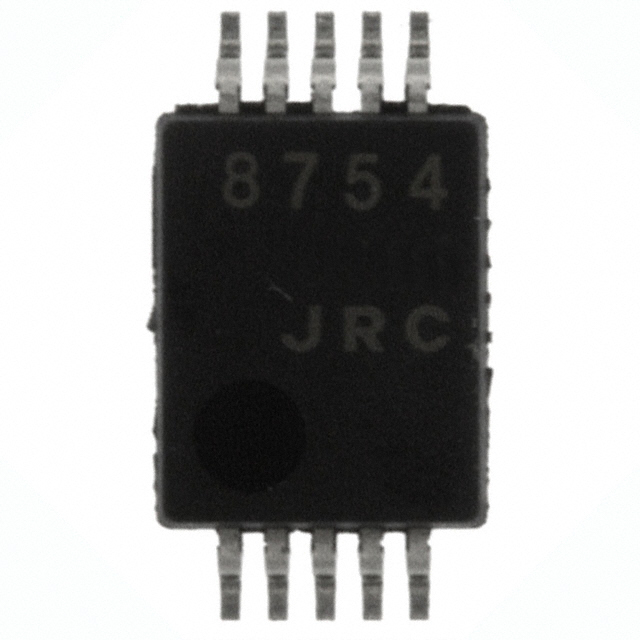

NJU8754V-TE2
IC AMP CLASS D MONO 1.2W 10SSOPManufacturer: Nisshinbo Micro Devices Inc.
Categories: Audio Amplifiers
Quality Control: Learn More
Nisshinbo Micro Devices Inc. NJU8754V-TE2 is a highly efficient Class D audio amplifier IC. This mono, single-channel amplifier delivers up to 1.2W into an 8-ohm load, making it suitable for various portable and space-constrained audio applications. Key features include integrated mute and standby functions for power management, along with robust short-circuit protection and PWM modulation for optimal performance. The device operates over a supply voltage range of 2.7V to 5.25V and is specified for an ambient temperature range of -40°C to 85°C. Supplied in a 10-SSOP package, the NJU8754V-TE2 is designed for surface-mount assembly and is provided on tape and reel for high-volume manufacturing. Its performance characteristics are well-suited for use in consumer electronics, personal audio devices, and automotive infotainment systems.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Mute, PWM, Short-Circuit Protection, Standby |
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-LFSOP (0.173"", 4.40mm Width) |
| Output Type | 1-Channel (Mono) |
| Mounting Type | Surface Mount |
| Type | Class D |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 2.7V ~ 5.25V |
| Max Output Power x Channels @ Load | 1.2W x 1 @ 8Ohm |
| Supplier Device Package | 10-SSOP |
