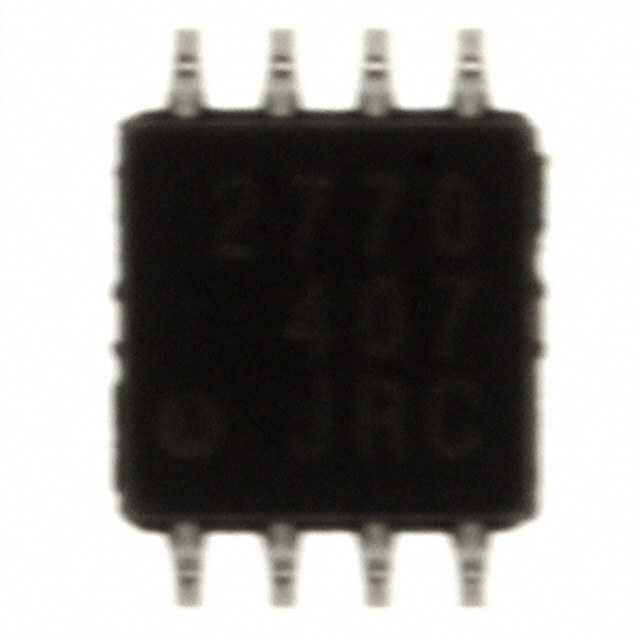

NJM2770RB1-TE1
IC AMP CLASS AB MONO 400MW 8TVSPManufacturer: Nisshinbo Micro Devices Inc.
Categories: Audio Amplifiers
Quality Control: Learn More
The Nisshinbo Micro Devices Inc. NJM2770RB1-TE1 is a mono Class AB audio amplifier IC. This device delivers up to 400mW of output power into a 16-ohm load. Key features include integrated standby and thermal protection circuitry, enhancing system reliability. The NJM2770RB1-TE1 operates from a 2V to 4.5V supply voltage range and is packaged in an 8-TVSP (8-VSSOP/8-MSOP) for surface mount applications. Its operating temperature range is from -40°C to 85°C. This component is suitable for various audio applications across consumer electronics and portable devices.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Standby, Thermal Protection |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-VSSOP, 8-MSOP (0.110"", 2.80mm Width) |
| Output Type | 1-Channel (Mono) |
| Mounting Type | Surface Mount |
| Type | Class AB |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 2V ~ 4.5V |
| Max Output Power x Channels @ Load | 400mW x 1 @ 16Ohm |
| Supplier Device Package | 8-TVSP |
