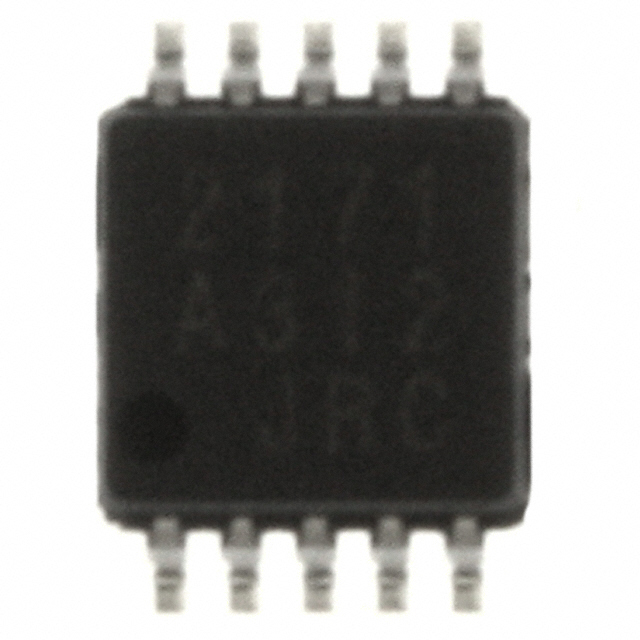

NJM2171AR-TE1
IC AMP CLASS AB STER 8.5MW 10VSPManufacturer: Nisshinbo Micro Devices Inc.
Categories: Audio Amplifiers
Quality Control: Learn More
The Nisshinbo Micro Devices Inc. NJM2171AR-TE1 is a 2-channel, Class AB audio amplifier IC designed for headphone applications. This component offers a typical output power of 8.5mW per channel into a 16-ohm load, operating from a supply voltage range of 1.8V to 4.5V. Key features include integrated mute and standby functions, facilitating power management. The NJM2171AR-TE1 is supplied in a 10-VSP package, specifically a 10-TFSOP or 10-MSOP variant with a 3.00mm width, suitable for surface mounting. Its operating temperature range is -20°C to 75°C. This amplifier is commonly utilized in portable electronics and consumer audio devices.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Mute, Standby |
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-TFSOP, 10-MSOP (0.118"", 3.00mm Width) |
| Output Type | Headphones, 2-Channel (Stereo) |
| Mounting Type | Surface Mount |
| Type | Class AB |
| Operating Temperature | -20°C ~ 75°C (TA) |
| Voltage - Supply | 1.8V ~ 4.5V |
| Max Output Power x Channels @ Load | 8.5mW x 2 @ 16Ohm |
| Supplier Device Package | 10-VSP |
