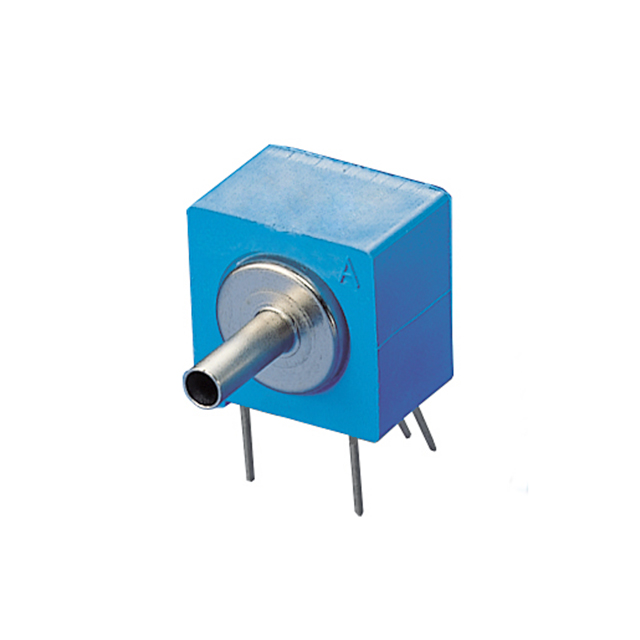

P-3000S-501D-04
SENSOR 7.11PSID 0.14"" 0.1VManufacturer: Nidec Components Corporation
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Pressure Sensor 7.11PSI (49kPa) Differential Male - 0.14"" (3.5mm) Tube, Dual 0 mV ~ 100 mV 5-DIP Module, Dual Ports, Opposite Sides
Additional Information
Series: P-3000SRoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 5-DIP Module, Dual Ports, Opposite Sides |
| Output Type | Analog Voltage |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 100 mV |
| Operating Pressure | 7.11PSI (49kPa) |
| Pressure Type | Differential |
| Accuracy | - |
| Operating Temperature | -20°C ~ 100°C |
| Termination Style | PC Pin |
| Voltage - Supply | - |
| Port Size | Male - 0.14"" (3.5mm) Tube, Dual |
| Applications | Board Mount |
| Port Style | Barbless |
| Maximum Pressure | 14.21PSI (98kPa) |
