MDD3400A
MOSFET N-CH 30V 5.8A SOT23Manufacturer: NextGen Components
Categories: Single FETs, MOSFETs
Quality Control: Learn More

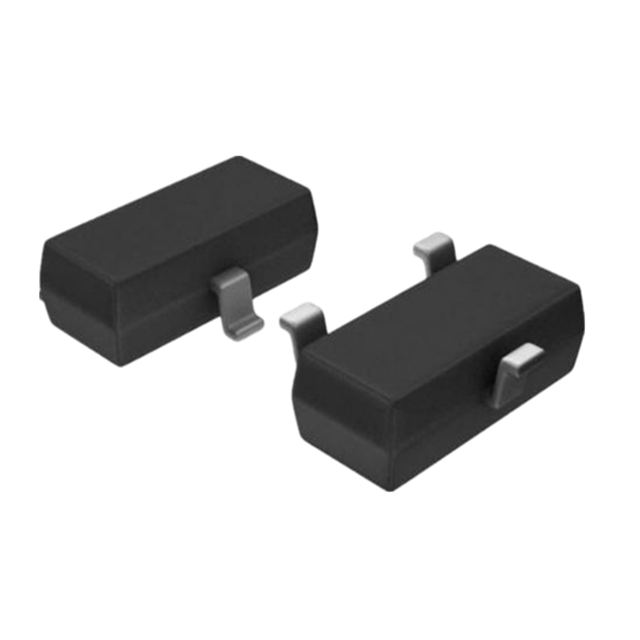

N-Channel 30 V 5.8A 1.5W (Ta) Surface Mount SOT-23-3
Additional Information
Series: MDDRoHS Status: RoHS CompliantManufacturer Lead Time: Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-23-3 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 5.8A |
| Rds On (Max) @ Id, Vgs | 32mOhm @ 5.8A, 10V |
| Power Dissipation (Max) | 1.5W (Ta) |
| Vgs(th) (Max) @ Id | 1.2V @ 250µA |
| Supplier Device Package | SOT-23-3 |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±12V |
| Drain to Source Voltage (Vdss) | 30 V |
| Gate Charge (Qg) (Max) @ Vgs | 10.5 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 635 pF @ 15 V |
