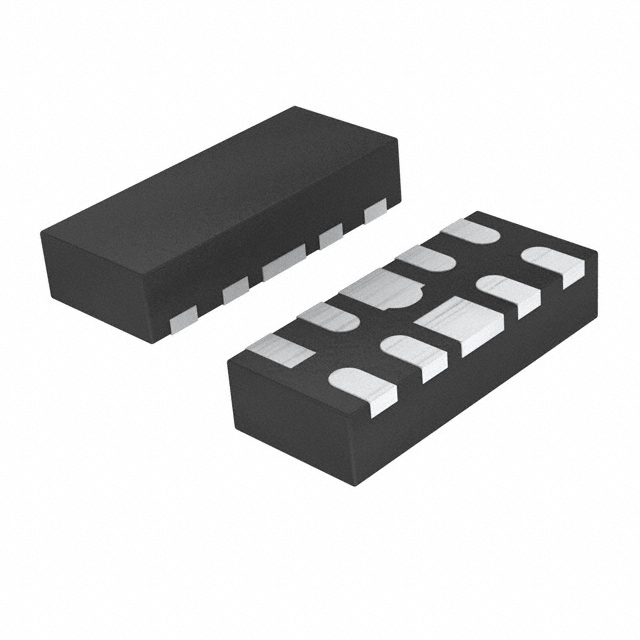

PESD1LVDS,115
TVS DIODE 5.5VWM DFN2510-10Manufacturer: Nexperia USA Inc.
Categories: TVS Diodes
Quality Control: Learn More
Clamp Ipp Tvs Diode Surface Mount DFN2510-10
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-XFDFN |
| Mounting Type | Surface Mount |
| Type | Steering (Rail to Rail) |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Applications | - |
| Capacitance @ Frequency | - |
| Current - Peak Pulse (10/1000µs) | - |
| Voltage - Reverse Standoff (Typ) | 5.5V (Max) |
| Supplier Device Package | DFN2510-10 |
| Unidirectional Channels | 4 |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | - |
| Power - Peak Pulse | - |
| Power Line Protection | Yes |
| Grade | Automotive |
| Qualification | AEC-Q101 |
