PDTC143EQAZ
TRANS PREBIAS NPN 50V 0.1A 3DFNManufacturer: Nexperia USA Inc.
Categories: Single, Pre-Biased Bipolar Transistors
Quality Control: Learn More

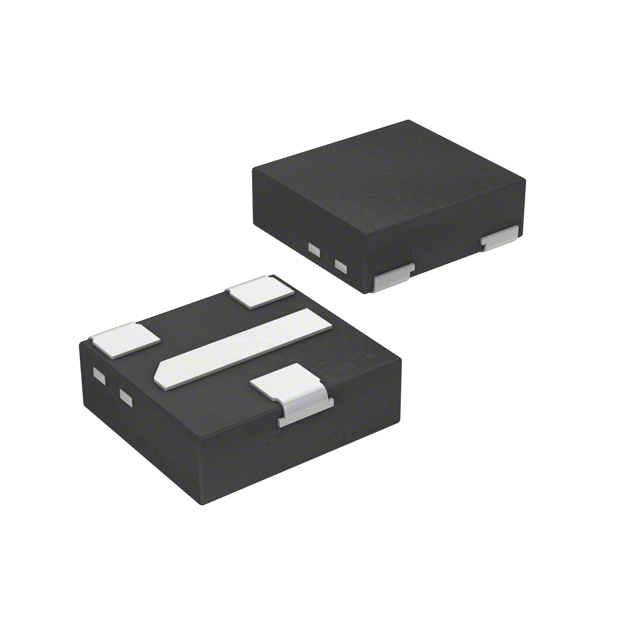

Pre-Biased Bipolar Transistor (BJT) NPN - Pre-Biased 50 V 100 mA 230 MHz 280 mW Surface Mount DFN1010D-3
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 3-XDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Transistor Type | NPN - Pre-Biased |
| Vce Saturation (Max) @ Ib, Ic | 150mV @ 500µA, 10mA |
| Current - Collector Cutoff (Max) | 1µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 30 @ 10mA, 5V |
| Supplier Device Package | DFN1010D-3 |
| Grade | Automotive |
| Current - Collector (Ic) (Max) | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | 50 V |
| Power - Max | 280 mW |
| Frequency - Transition | 230 MHz |
| Resistor - Base (R1) | 4.7 kOhms |
| Resistor - Emitter Base (R2) | 4.7 kOhms |
| Qualification | AEC-Q101 |
