PXN012-100QSJ
N-CHANNEL 100 V, 12 MOHM, STANDAManufacturer: Nexperia USA Inc.
Categories: Single FETs, MOSFETs
Quality Control: Learn More

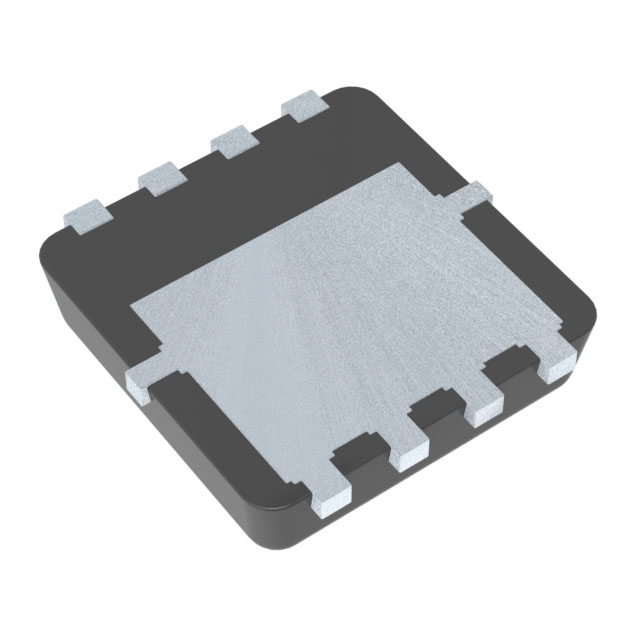

N-Channel 100 V 50A 58W Surface Mount MLPAK33
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | 8-PowerVDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | - |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 50A |
| Rds On (Max) @ Id, Vgs | - |
| FET Feature | - |
| Power Dissipation (Max) | 58W |
| Vgs(th) (Max) @ Id | - |
| Supplier Device Package | MLPAK33 |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | - |
| Drain to Source Voltage (Vdss) | 100 V |
| Gate Charge (Qg) (Max) @ Vgs | 22 nC @ 10 V |
Request a Quote
