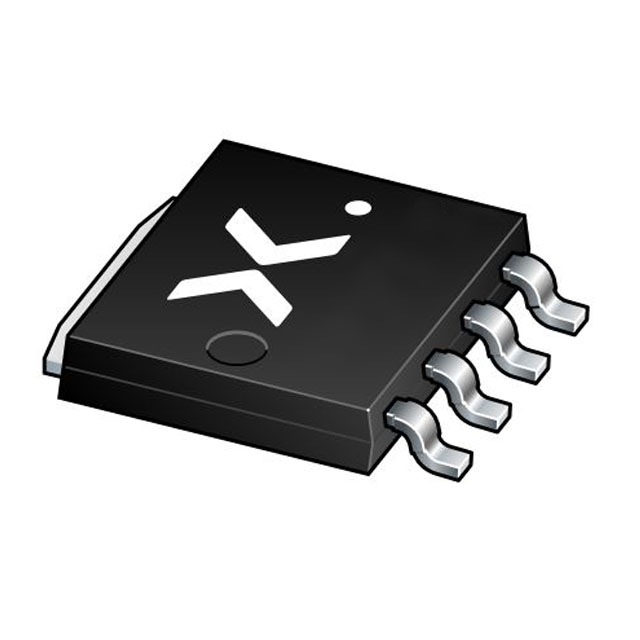

PSMNR70-40YSNX
PSMNR70-40YSN/SOT1023/LFPAK56EManufacturer: Nexperia USA Inc.
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 40 V 320A (Ta) 333W (Ta) Surface Mount LFPAK56, Power-SO8
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-1023, 4-LFPAK |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 320A (Ta) |
| FET Feature | Schottky Diode (Body) |
| Power Dissipation (Max) | 333W (Ta) |
| Vgs(th) (Max) @ Id | 3.6V @ 1mA |
| Supplier Device Package | LFPAK56, Power-SO8 |
| Grade | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 40 V |
| Gate Charge (Qg) (Max) @ Vgs | 235 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 14307 pF @ 25 V |
| Qualification | - |
