PSMN1R4-100CSFJ
NEXTPOWER 100 V, 1.35 MOHM, N-CHManufacturer: Nexperia USA Inc.
Categories: Single FETs, MOSFETs
Quality Control: Learn More

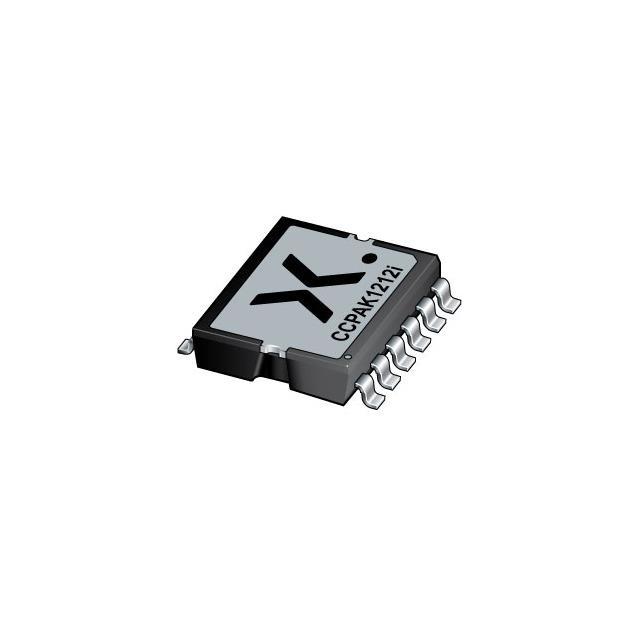

N-Channel 100 V 400A (Ta) Surface Mount CCPAK1212i
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-BESOP (0.370"", 9.40mm Width), Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 400A (Ta) |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 4V @ 1mA |
| Supplier Device Package | CCPAK1212i |
| Grade | - |
| Drive Voltage (Max Rds On, Min Rds On) | 7V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 100 V |
| Gate Charge (Qg) (Max) @ Vgs | 248 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 17737 pF @ 50 V |
| Qualification | - |
