PSMN1R2-80ASEJ
N-CHANNEL, 80 V, 1.18 MOHM, MOSFManufacturer: Nexperia USA Inc.
Categories: Single FETs, MOSFETs
Quality Control: Learn More

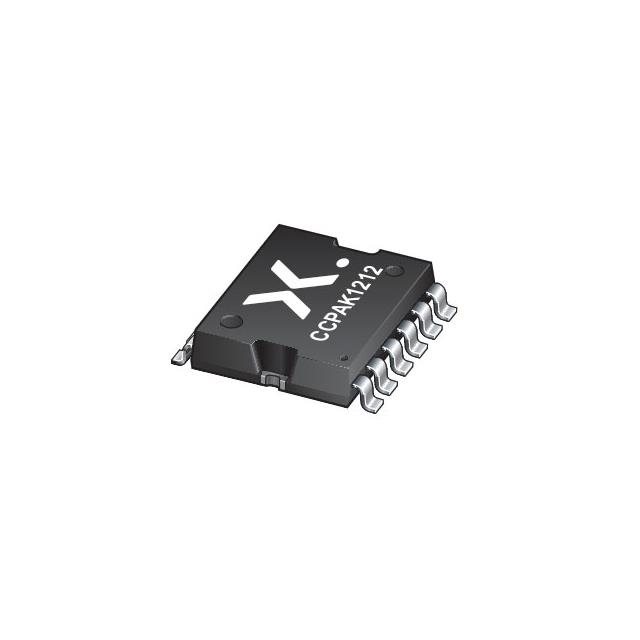

N-Channel 80 V 375A (Ta) Surface Mount CCPAK1212
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-BESOP (0.370"", 9.40mm Width), Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 375A (Ta) |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 3.6V @ 1mA |
| Supplier Device Package | CCPAK1212 |
| Grade | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 80 V |
| Gate Charge (Qg) (Max) @ Vgs | 350 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 26187 pF @ 40 V |
| Qualification | - |
Request a Quote
