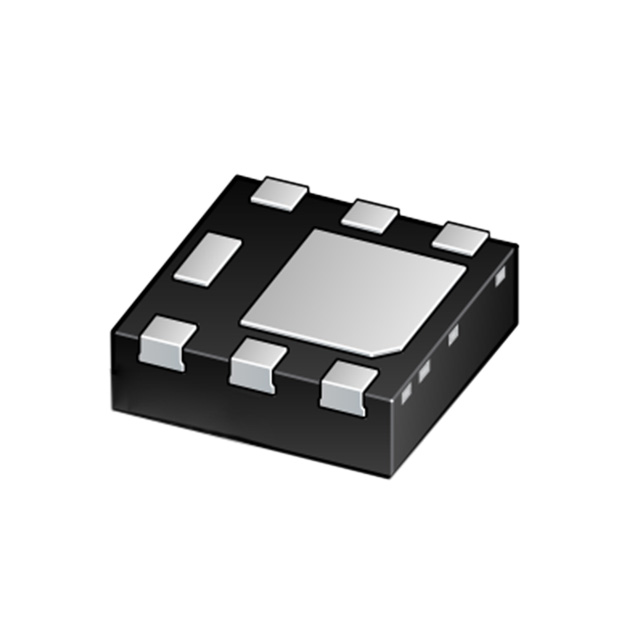

PMPB09R5TPX
SMALL SIGNAL MOSFET FOR MOBILEManufacturer: Nexperia USA Inc.
Categories: Single FETs, MOSFETs
Quality Control: Learn More
P-Channel 20 V 10.5A (Ta) 1.9W (Ta), 12.5W (Tc) Surface Mount DFN2020M-6
Additional Information
Series: TrenchMOS™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: Last Time BuyPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-UDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 10.5A (Ta) |
| Rds On (Max) @ Id, Vgs | 11.5mOhm @ 10.5A, 4.5V |
| FET Feature | - |
| Power Dissipation (Max) | 1.9W (Ta), 12.5W (Tc) |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Supplier Device Package | DFN2020M-6 |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V |
| Vgs (Max) | ±12V |
| Drain to Source Voltage (Vdss) | 20 V |
| Gate Charge (Qg) (Max) @ Vgs | 29 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1730 pF @ 10 V |
