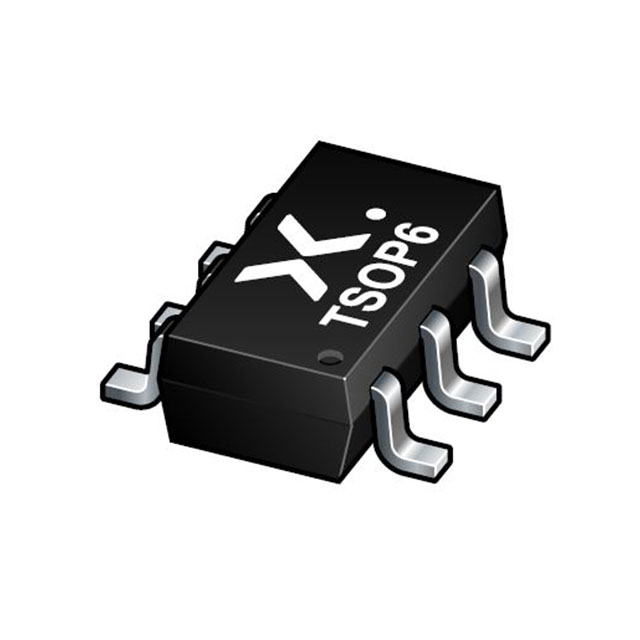

PMN30XPAX
MOSFET P-CH 20V 5.2A 6TSOPManufacturer: Nexperia USA Inc.
Categories: Single FETs, MOSFETs
Quality Control: Learn More
P-Channel 20 V 5.2A (Ta) 660mW (Ta), 7.5W (Tc) Surface Mount 6-TSOP
Additional Information
Series: TrenchMOS™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | SC-74, SOT-457 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 5.2A (Ta) |
| Rds On (Max) @ Id, Vgs | 33mOhm @ 5.2A, 8V |
| FET Feature | - |
| Power Dissipation (Max) | 660mW (Ta), 7.5W (Tc) |
| Vgs(th) (Max) @ Id | 1.3V @ 250µA |
| Supplier Device Package | 6-TSOP |
| Grade | Automotive |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 8V |
| Vgs (Max) | ±12V |
| Drain to Source Voltage (Vdss) | 20 V |
| Gate Charge (Qg) (Max) @ Vgs | 16 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1039 pF @ 10 V |
| Qualification | AEC-Q101 |
