PMCM440VNEZ

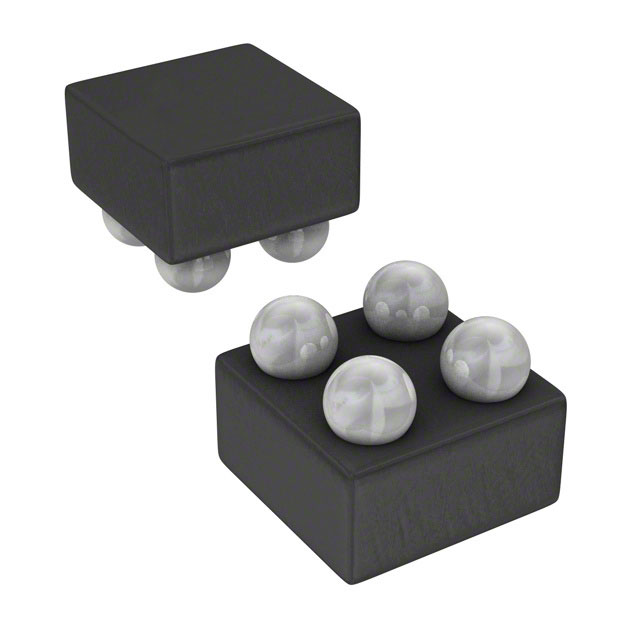

MOSFET N-CH 12V 3.9A 4WLCSPManufacturer: Nexperia USA Inc.
Categories: Single FETs, MOSFETs
Quality Control: Learn More
Nexperia USA Inc. PMCM440VNEZ is an N-channel MOSFET designed for efficient power switching applications. This component features a Drain-Source Voltage (Vdss) of 12V and a continuous drain current (Id) capability of 3.9A at 25°C. The device exhibits a maximum On-Resistance (Rds On) of 67mOhm at 3A and 4.5V gate drive. With a gate charge (Qg) of 8.2 nC at 4.5V and input capacitance (Ciss) of 360 pF at 6V, it is optimized for high-frequency operation. The MOSFET is housed in a compact 4-WLCSP (0.78x0.78) package, suitable for space-constrained designs. Power dissipation is rated at 400mW (Ta) and 12.5W (Tc), with an operating temperature range of -55°C to 150°C. This MOSFET finds application in various industries including consumer electronics and portable devices.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-XFBGA, WLCSP |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 3.9A (Ta) |
| Rds On (Max) @ Id, Vgs | 67mOhm @ 3A, 4.5V |
| FET Feature | - |
| Power Dissipation (Max) | 400mW (Ta), 12.5W (Tc) |
| Vgs(th) (Max) @ Id | 900mV @ 250µA |
| Supplier Device Package | 4-WLCSP (0.78x0.78) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V |
| Vgs (Max) | ±8V |
| Drain to Source Voltage (Vdss) | 12 V |
| Gate Charge (Qg) (Max) @ Vgs | 8.2 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 360 pF @ 6 V |
