PMCB60XNEAYL
SMALL SIGNAL MOSFET FOR MOBILEManufacturer: Nexperia USA Inc.
Categories: Single FETs, MOSFETs
Quality Control: Learn More

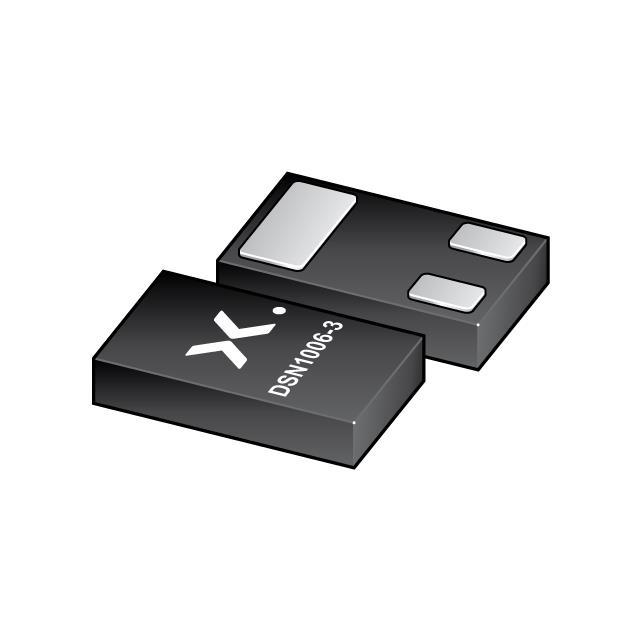

N-Channel 30 V 3.5A (Ta) 480mW (Ta), 7W (Tc) Surface Mount DSN1006-3
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 3-XFDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 3.5A (Ta) |
| Rds On (Max) @ Id, Vgs | 55mOhm @ 3.5A, 4.5V |
| FET Feature | - |
| Power Dissipation (Max) | 480mW (Ta), 7W (Tc) |
| Vgs(th) (Max) @ Id | 1.1V @ 250µA |
| Supplier Device Package | DSN1006-3 |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V |
| Vgs (Max) | ±12V |
| Drain to Source Voltage (Vdss) | 30 V |
| Gate Charge (Qg) (Max) @ Vgs | 7.5 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 420 pF @ 15 V |
Request a Quote
