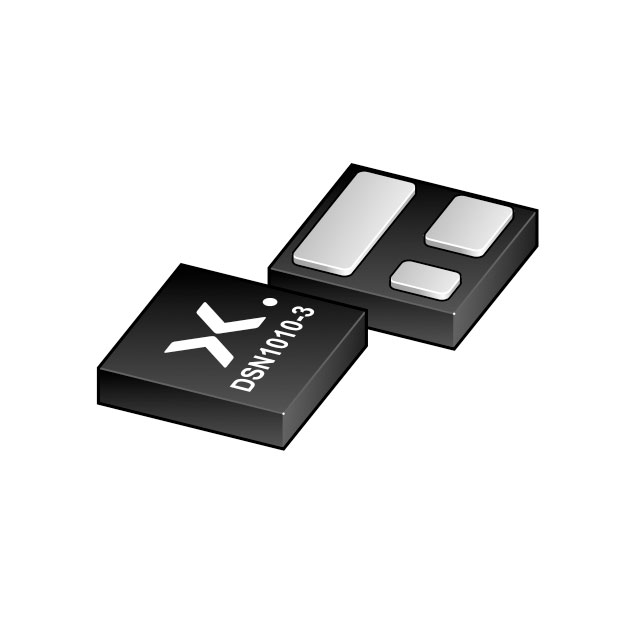

PMCA14UNYL
SMALL SIGNAL MOSFET FOR MOBILEManufacturer: Nexperia USA Inc.
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 12 V 11A (Ta) 1.2W (Ta), 31W (Tc) Surface Mount DSN1010-3
Additional Information
Series: TrenchMOS™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 3-XDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 11A (Ta) |
| Rds On (Max) @ Id, Vgs | 16mOhm @ 5A, 4.5V |
| FET Feature | - |
| Power Dissipation (Max) | 1.2W (Ta), 31W (Tc) |
| Vgs(th) (Max) @ Id | 900mV @ 250µA |
| Supplier Device Package | DSN1010-3 |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V |
| Vgs (Max) | ±8V |
| Drain to Source Voltage (Vdss) | 12 V |
| Gate Charge (Qg) (Max) @ Vgs | 12 nC @ 3.3 V |
| Input Capacitance (Ciss) (Max) @ Vds | 855 pF @ 6 V |
