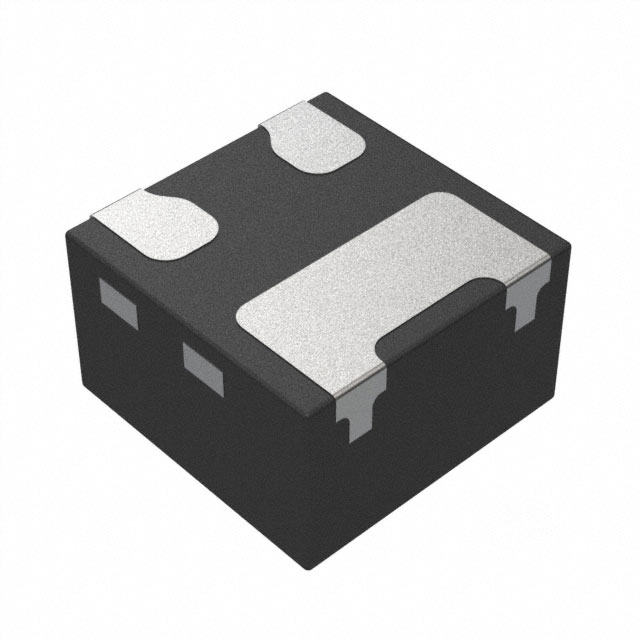

NX138AKHH
NX138AKH/SOT8001/DFN0606-3Manufacturer: Nexperia USA Inc.
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 60 V 260mA (Ta) 360mW (Ta), 2.3W (Tc) Surface Mount DFN0606-3
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 3-XFDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 260mA (Ta) |
| Rds On (Max) @ Id, Vgs | 4.2Ohm @ 190mA, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 360mW (Ta), 2.3W (Tc) |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA |
| Supplier Device Package | DFN0606-3 |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 60 V |
| Gate Charge (Qg) (Max) @ Vgs | 0.6 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 15 pF @ 30 V |
