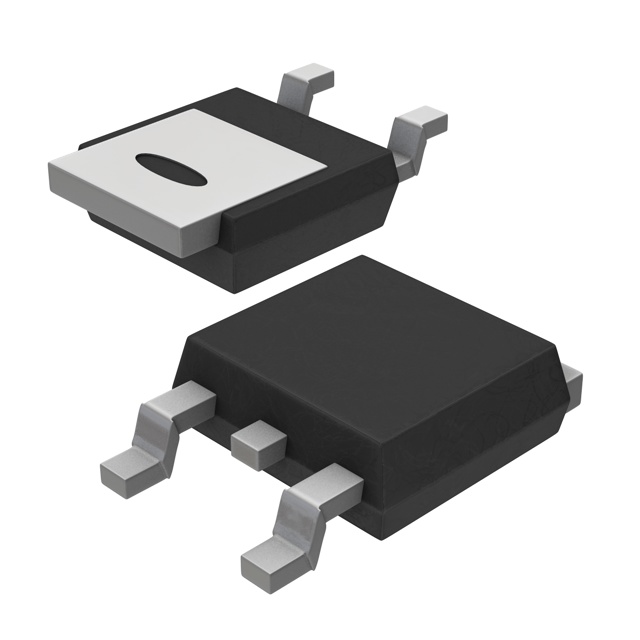

BUK7208-40B,118
MOSFET N-CH 40V 75A DPAKManufacturer: Nexperia USA Inc.
Categories: Single FETs, MOSFETs
Quality Control: Learn More
Nexperia USA Inc. TrenchMOS™ N-Channel Power MOSFET, part number BUK7208-40B-118. This AEC-Q101 qualified device features a Drain-Source Voltage (Vdss) of 40 V and a continuous drain current (Id) of 75 A at 25°C (Tc). With a low on-resistance (Rds On) of 8 mOhm at 25 A and 10 V, and a maximum power dissipation of 167 W (Tc), it is engineered for demanding applications. The device is packaged in a TO-252-3, DPAK (SC-63) for surface mounting and is supplied on tape and reel. Key parameters include a gate charge (Qg) of 35 nC at 10 V and input capacitance (Ciss) of 2493 pF at 25 V. Operating temperature range is -55°C to 185°C (TJ). This component is widely utilized in automotive systems.
Additional Information
Series: TrenchMOS™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 185°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 75A (Tc) |
| Rds On (Max) @ Id, Vgs | 8mOhm @ 25A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 167W (Tc) |
| Vgs(th) (Max) @ Id | 4V @ 1mA |
| Supplier Device Package | DPAK |
| Grade | Automotive |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 40 V |
| Gate Charge (Qg) (Max) @ Vgs | 35 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 2493 pF @ 25 V |
| Qualification | AEC-Q101 |
